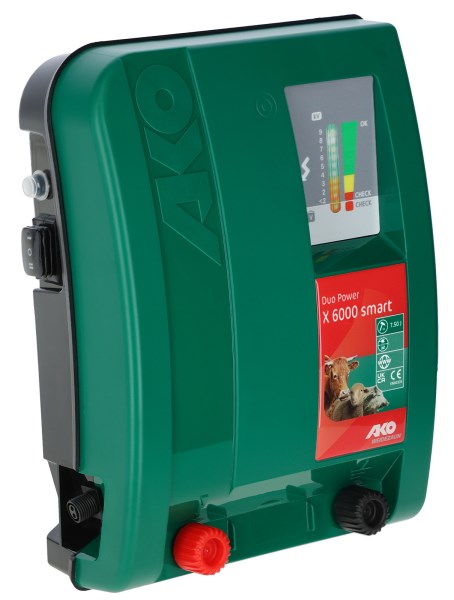

Duo Power X 6000 smart

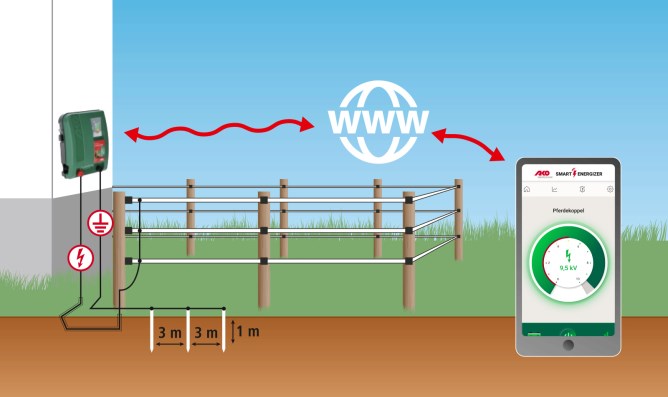

The new Duo Power X 6000 smart has a direct connection to the Cloud/Internet (not via WLAN), and enables the simple, distance-independent monitoring and control of fence systems.

The device can be controlled directly by mobile telephony. An additional device or WLAN within the reach of the device is therefore unnecessary.

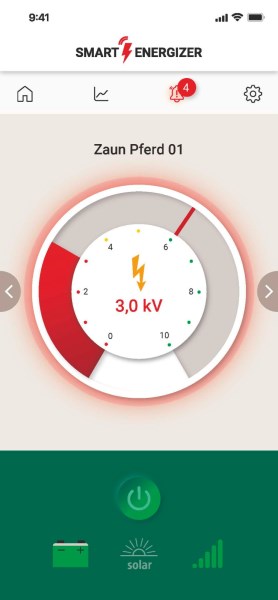

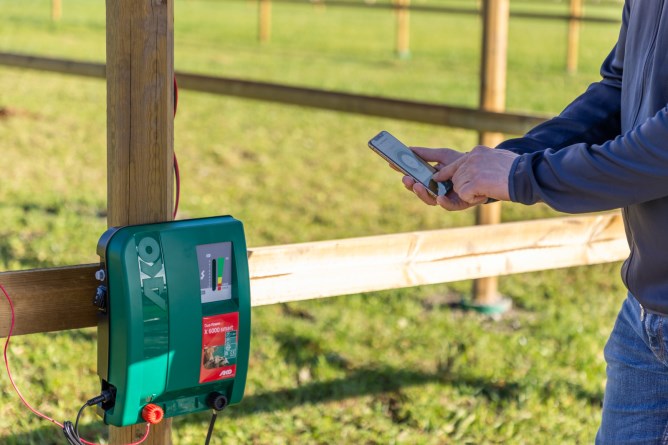

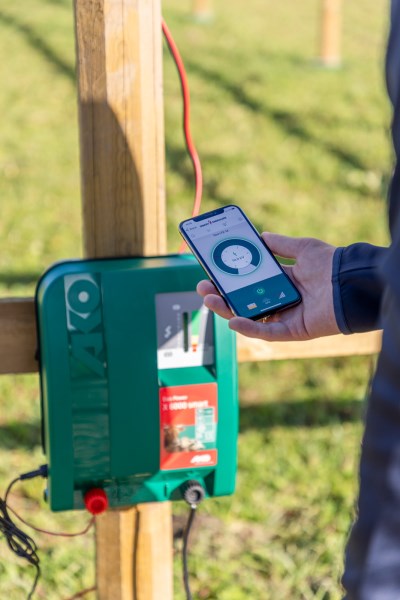

The fence device can be controlled and monitored from a smartphone or from a computer via a browser, using a free app.

If there are problems relating to the fence (e.g. the voltage drops below the minimum protection level), the device, or a weak 12-Volt battery, then as the user, you are warned in real time by a push message.

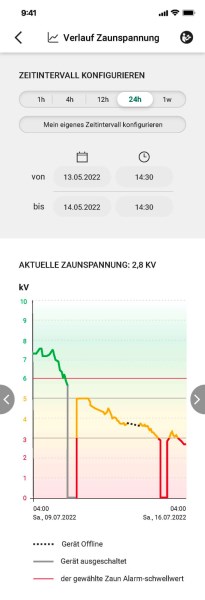

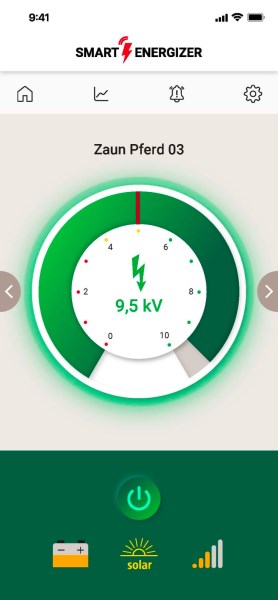

In the app, you are informer of both the current status and the historical trends of the fence and supply voltages.

You can switch the fence device ON/OFF via the app, modify alarm levels (e.g. threshold of minimum protection voltage can be set individually), and adjust the output power to the system’s needs.

Integrated GPS location function - for localising the device, especially in the event of theft - as soon as the device is connected to a power source.

TIP: The unit’s power consumption can be reduced by reducing the output power via app.

  • 12/230 Volt DUO Unit – maximum flexibility combined with powerful output
  • our all-round device for more demanding mobile or static applications - ideal for horses, cattle, sheep and deterring wild boars and wolves
  • can be used with medium to heavy vegetative growth
  • optimised consumption thanks to energy saving mode – saves battery power in fences in good condition. Also intelligent battery management for when battery voltage decreases.
  • deep discharge protection for the 12 volt battery
  • microprocessor controlled
  • High safety in line with the latest safety standards
  • incl. free app download
  • with High/Low/OFF switch for 2 different output powers
  • robust, impact-resistant, UV-resistant and weather-resistant housing thanks to the use of high-quality plastics
  • integrated hanging device for wall mounting
  • corresponds to applicable EU safety standards

Matching accessories (not included in scope of delivery):

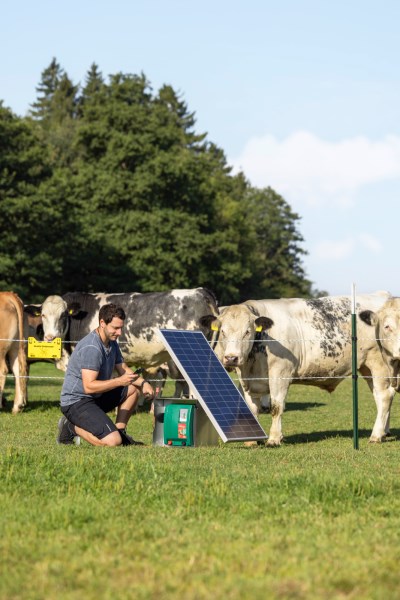

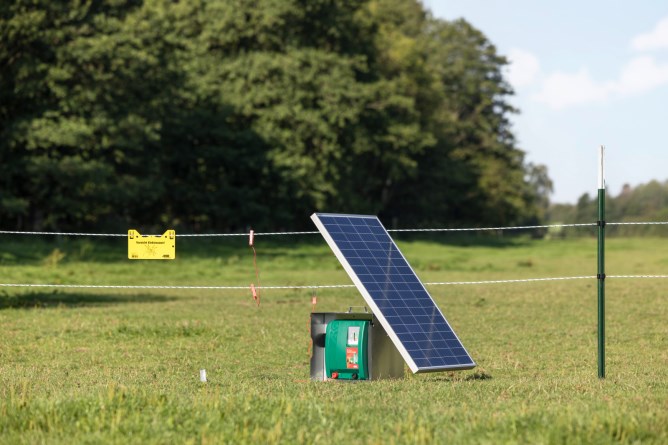

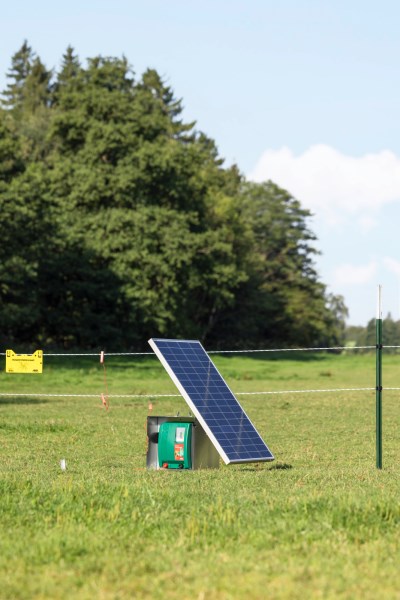

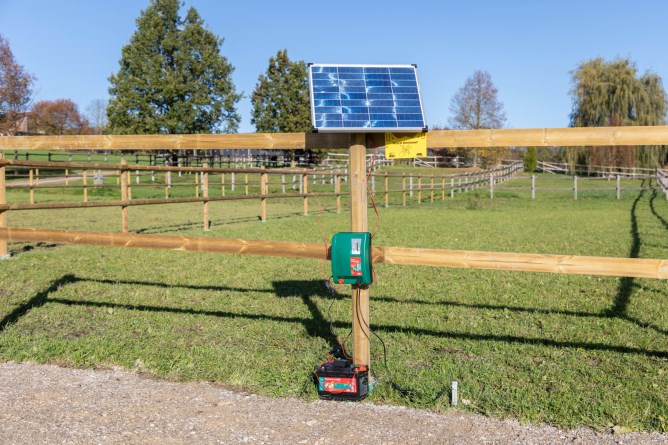

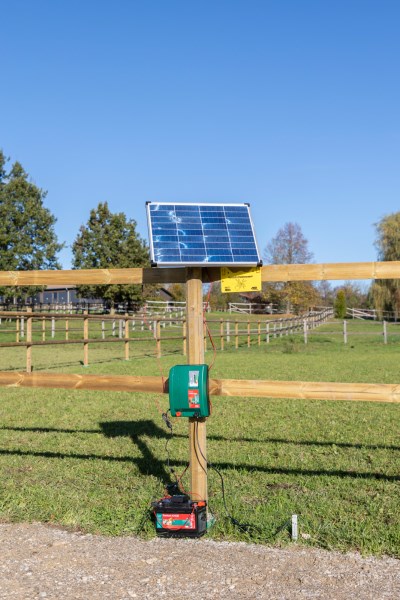

recommended solar module: 375559 (55 Watt), connection directly to the 12-Volt battery, ideal with ground anchor 442382

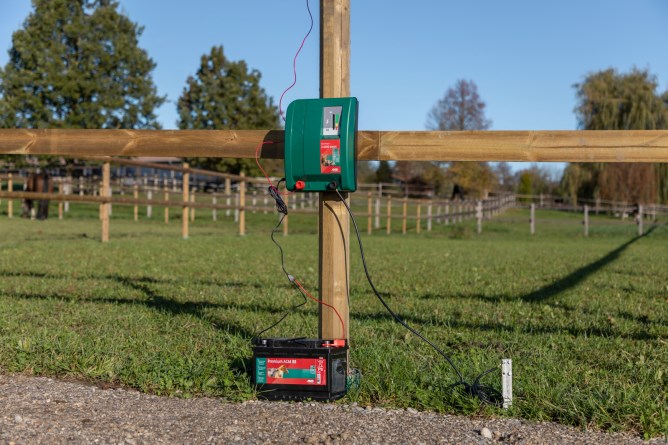

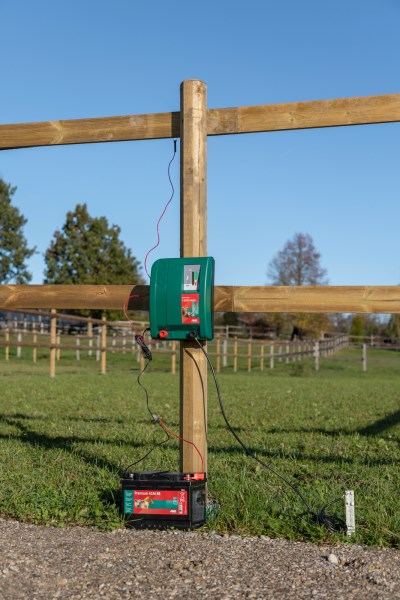

recommended 12 Volt battery: Premium AGM 12 V, 110 Ah (441204)

1 m earth rod (44615), at least 3 x

3 m ground connection cable for connecting the ground rods (44635)

Warning Sign (446513)

multi-colour LED bar graph display for output voltage and battery control

Important: mounting in the metal battery case can impair the radio connection to the LTE network

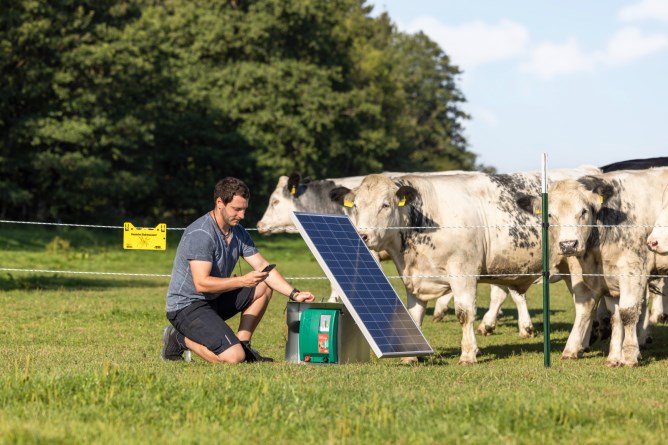

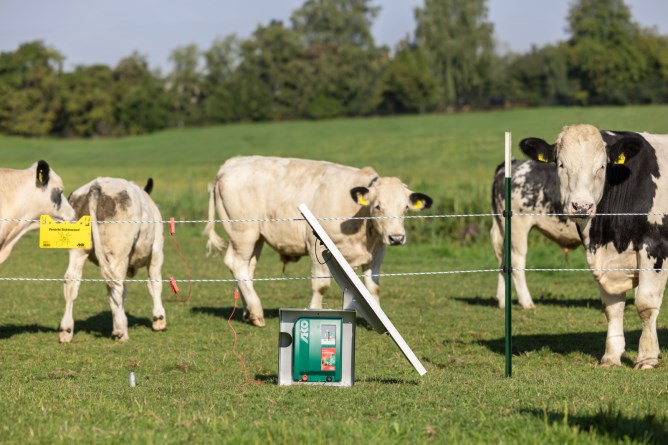

  • Solar backup possible
  • 4-year warranty
Ref. no.PUPallet
372876172 PAL
ModelRef. no.Stored Energymax. discharge energymax. voltageVoltage in Open CircuitVoltage at 500 Ohmstheoretical fence length as per VDEmax. fence length without vegetationmax. fence length with medium vegetationmax. fence length with high vegetationApprox. Number of Electrifiable NetsQty 1 m earth postsPower Consumption
X 6000 smart3728767.5 J5 J12400 V10400 V9600 V130 km40 km11 km6 km20365 mA - 400 mA
Included in delivery:

1 x 12/230 Volt DUO Fence Device "Smart" incl. Unrestricted LTE Use

1 x 230 volt power pack (371023)

1 x 12-Volt connection cable (E268739)

1 x fence / ground connector cable

1 x warning sign
