AKO Solar-PowerStation smart

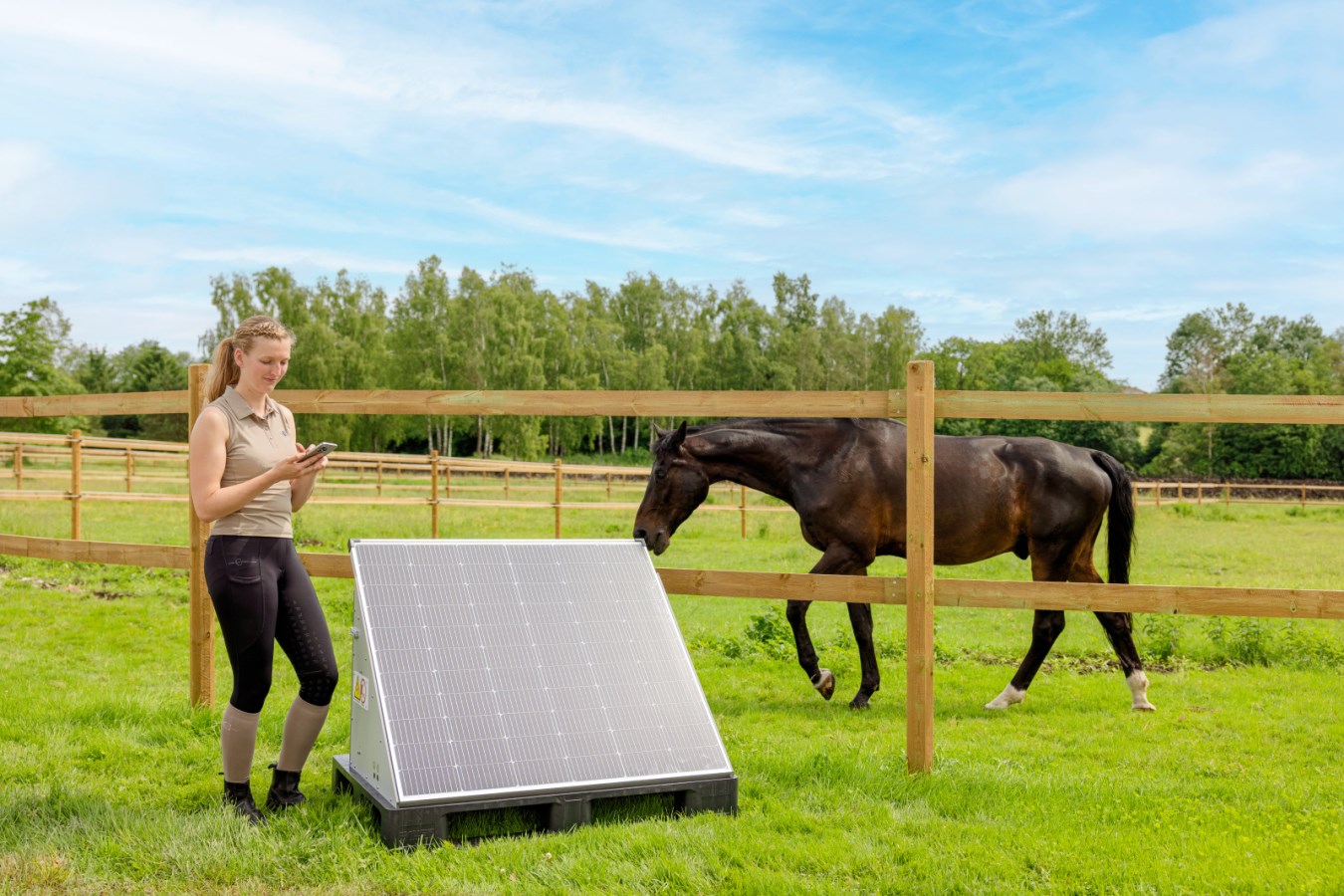

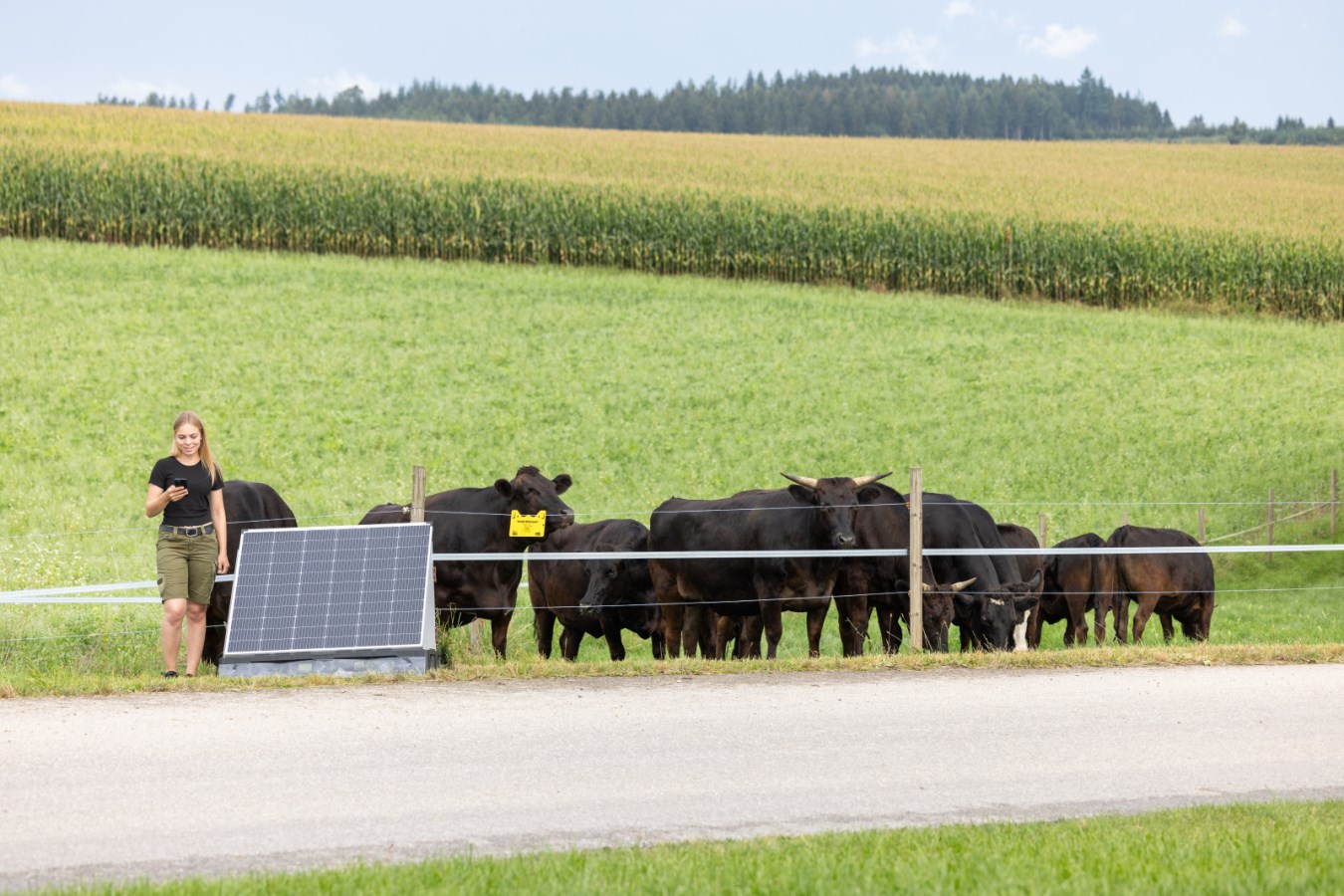

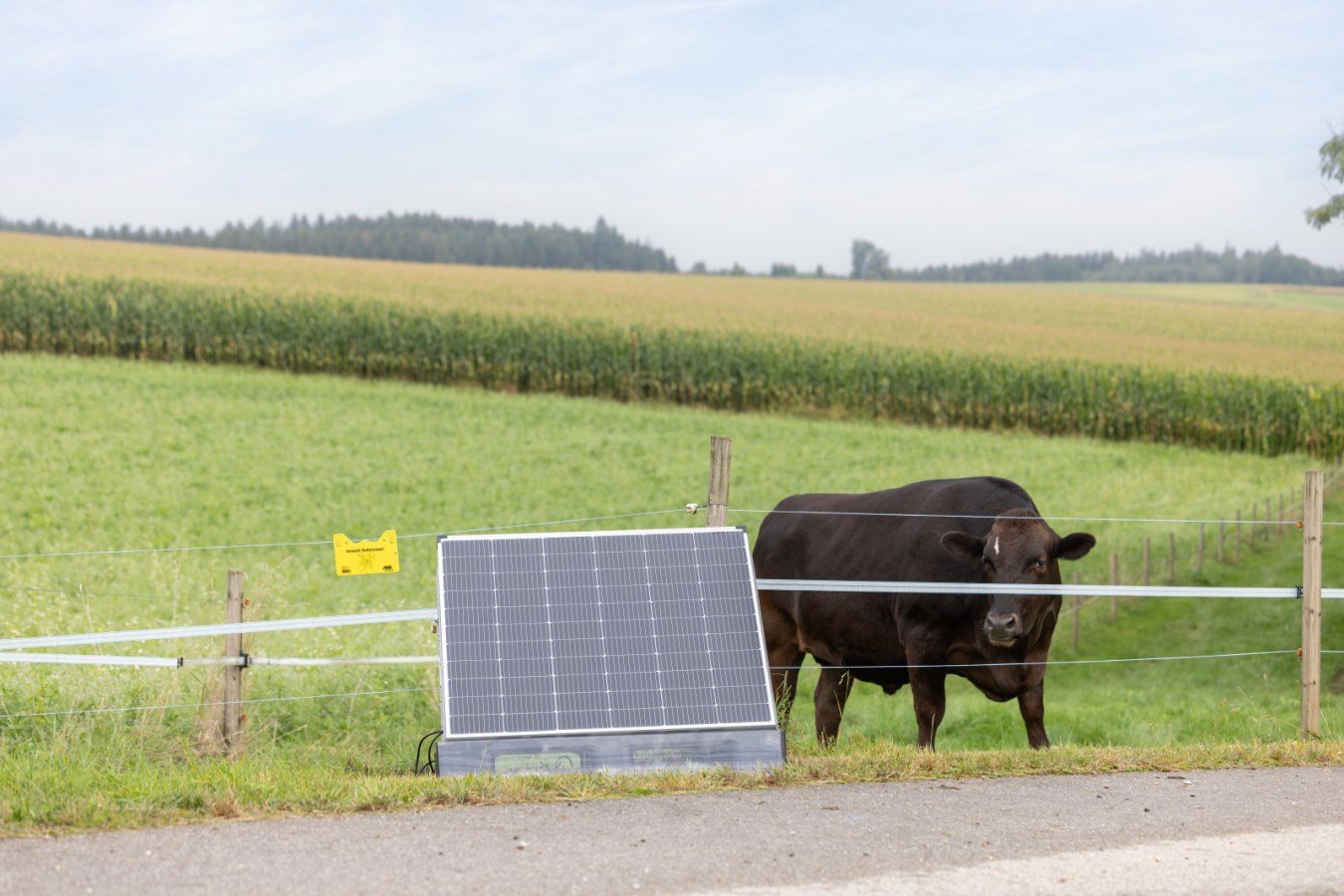

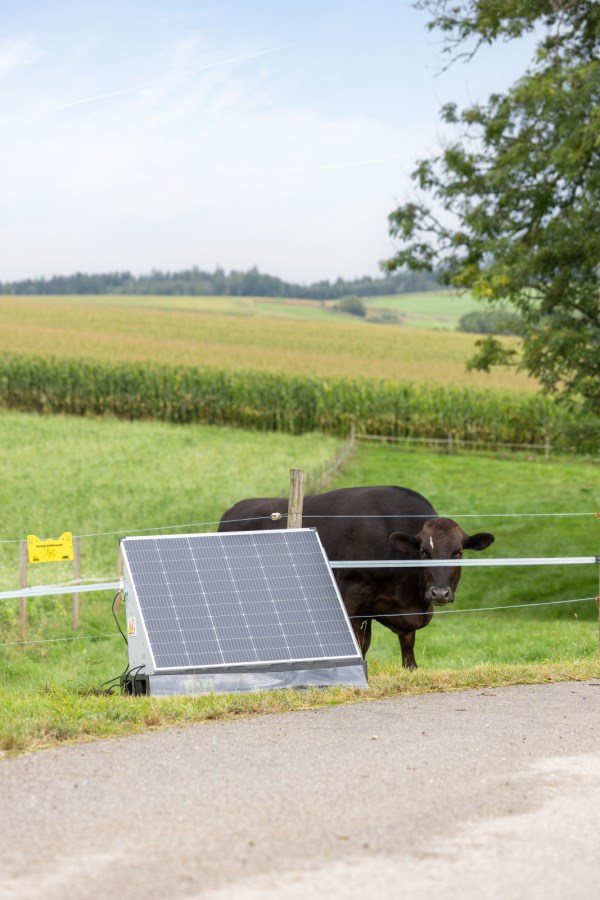

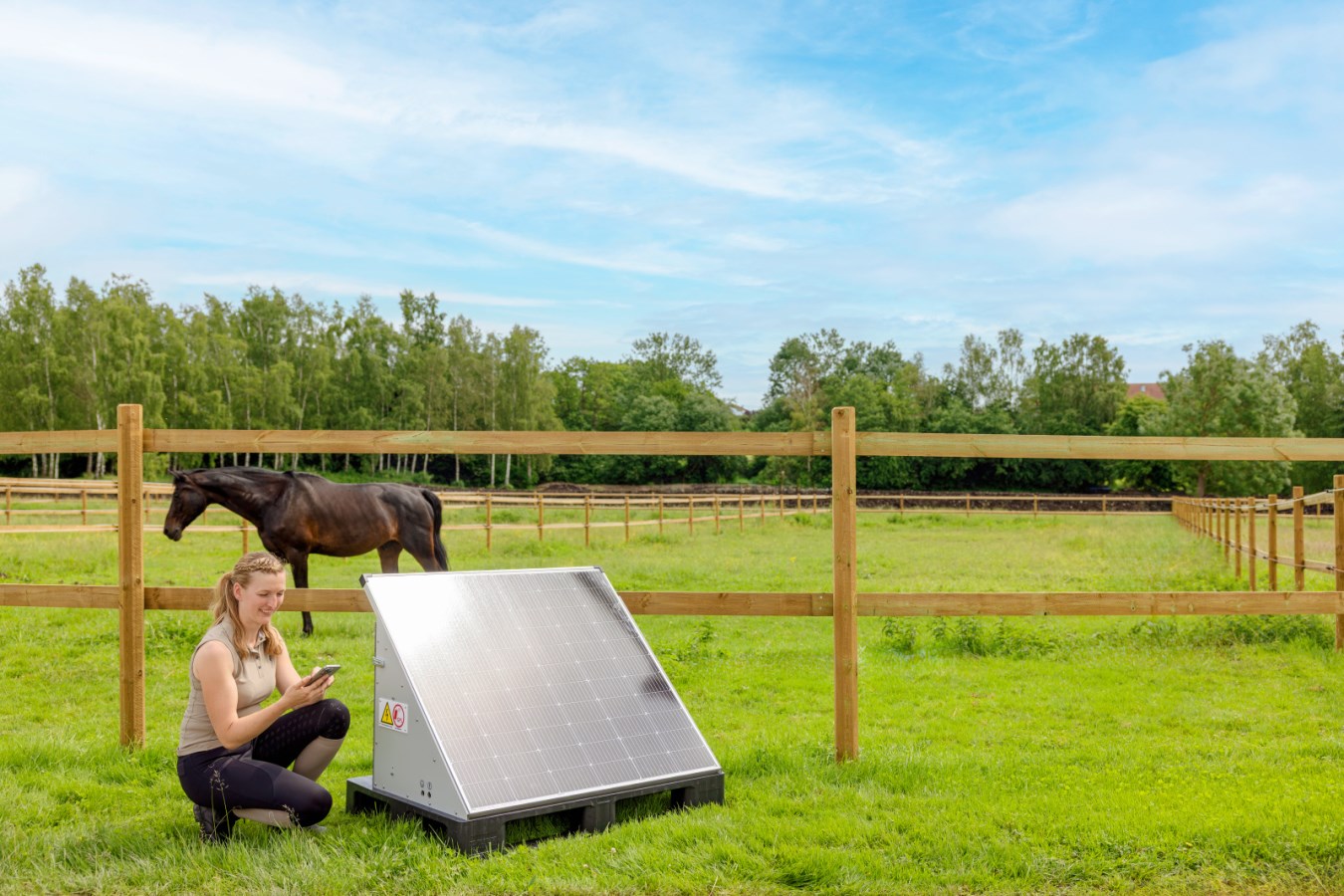

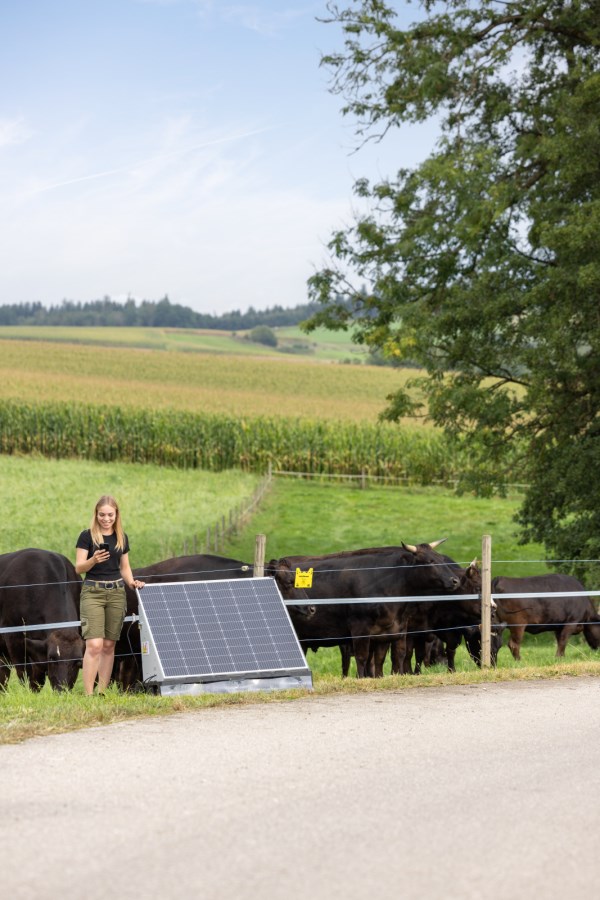

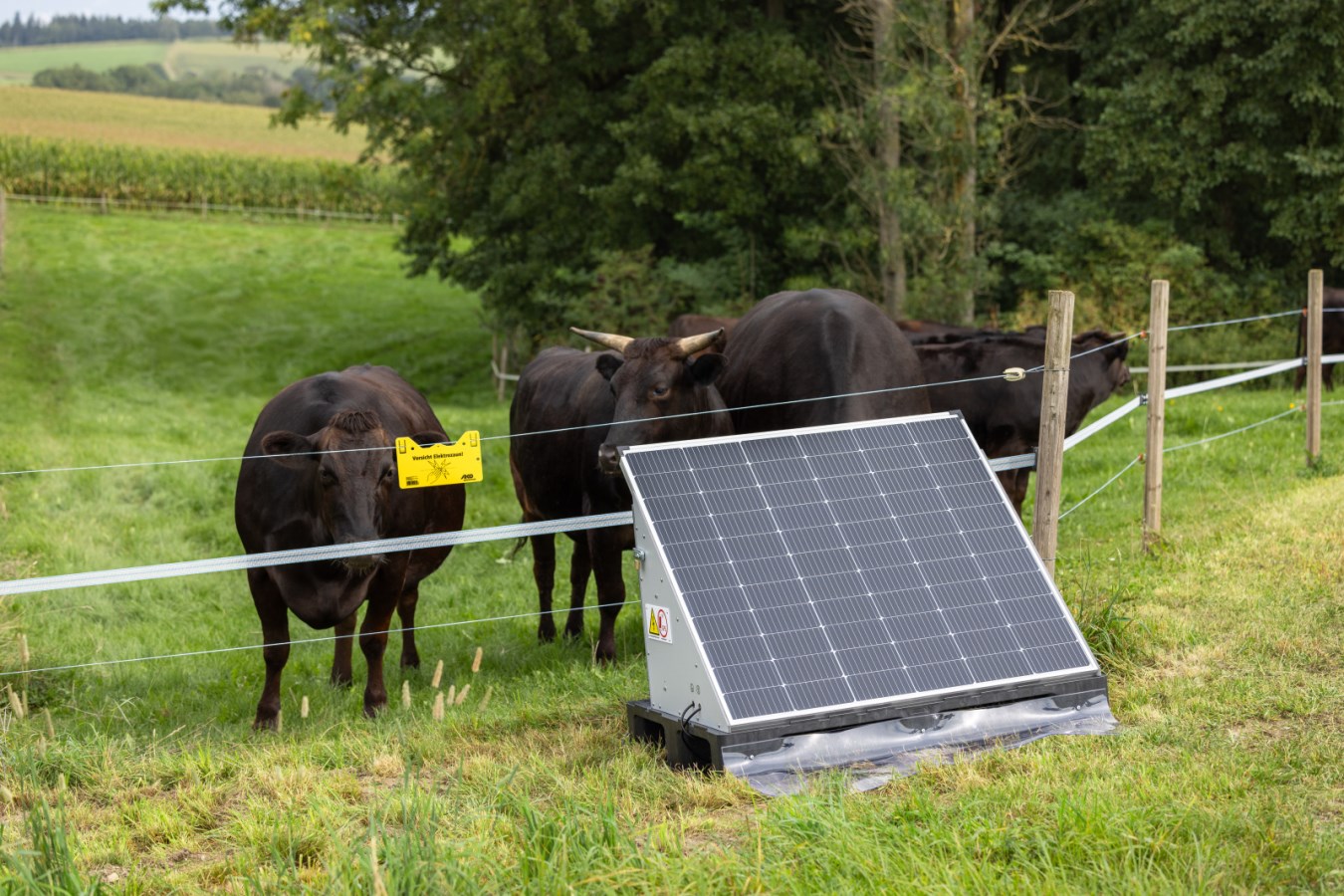

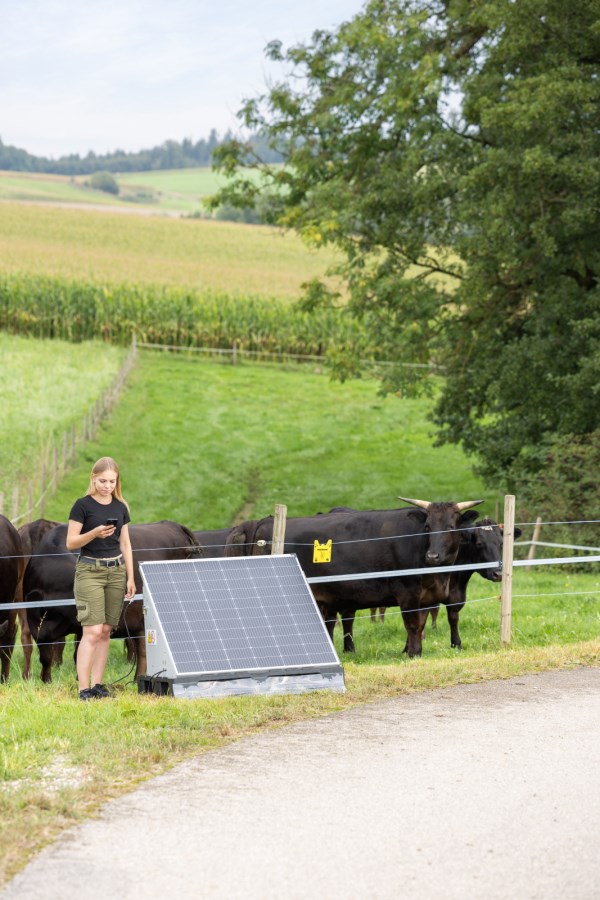

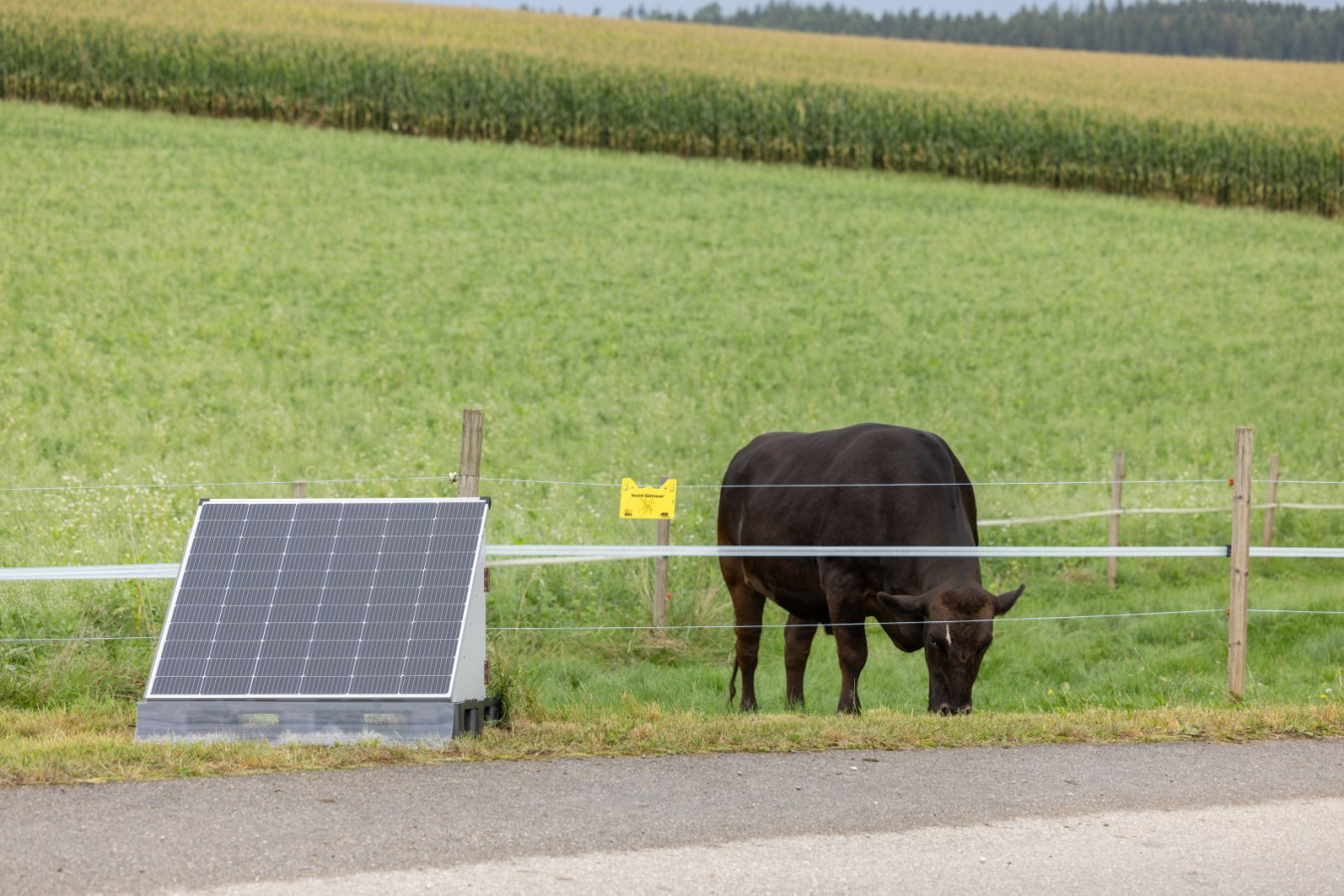

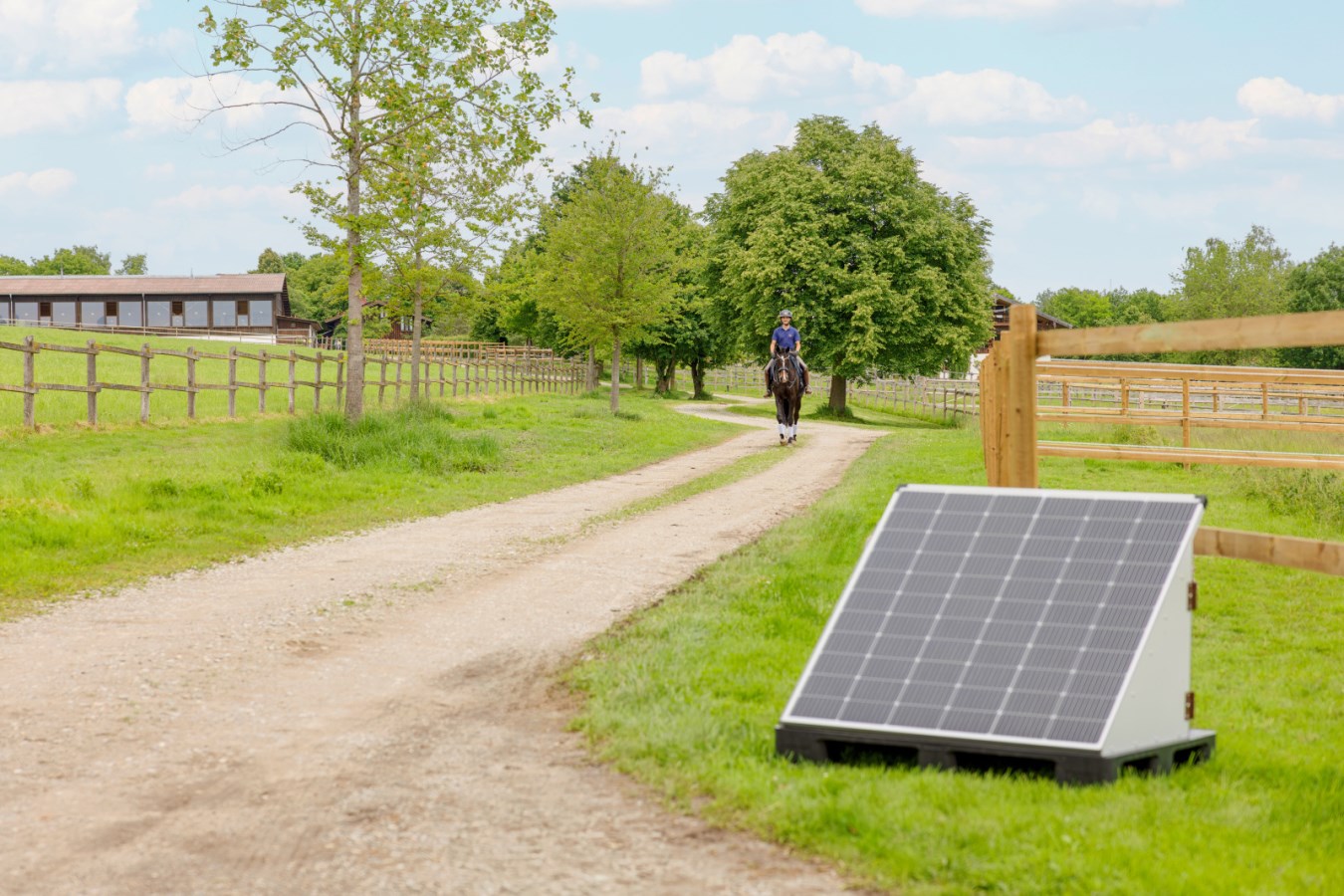

The solar station is ideal for large pastures without a power connection. Thanks to the practical app control, the system can be operated completely autonomously during the grazing season.

ideal for large pastures without 230 Volt access
autonomous operation during the grazing season from April to October
for long fence lines
directly integrated cloud connection
with GPS localisation function

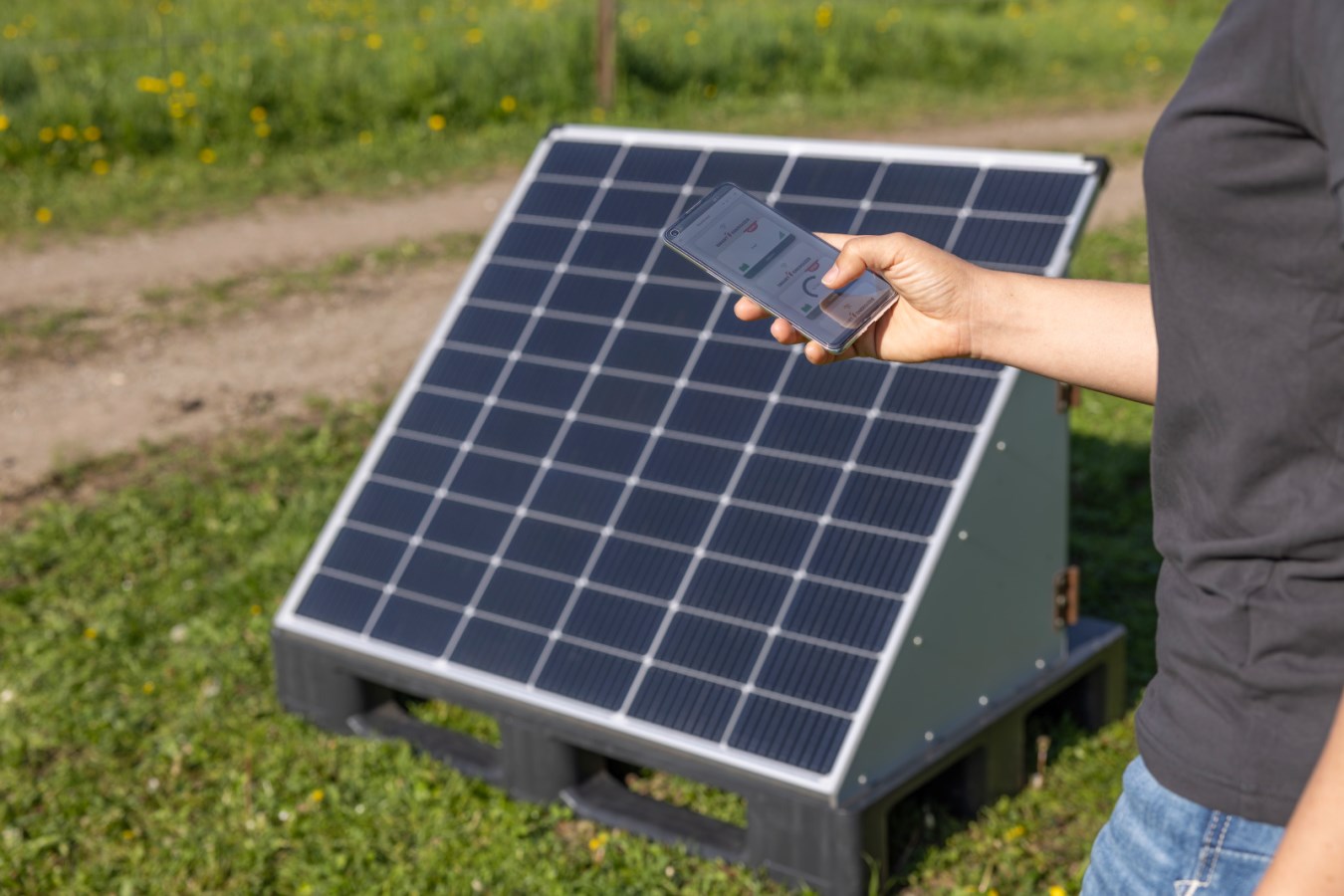

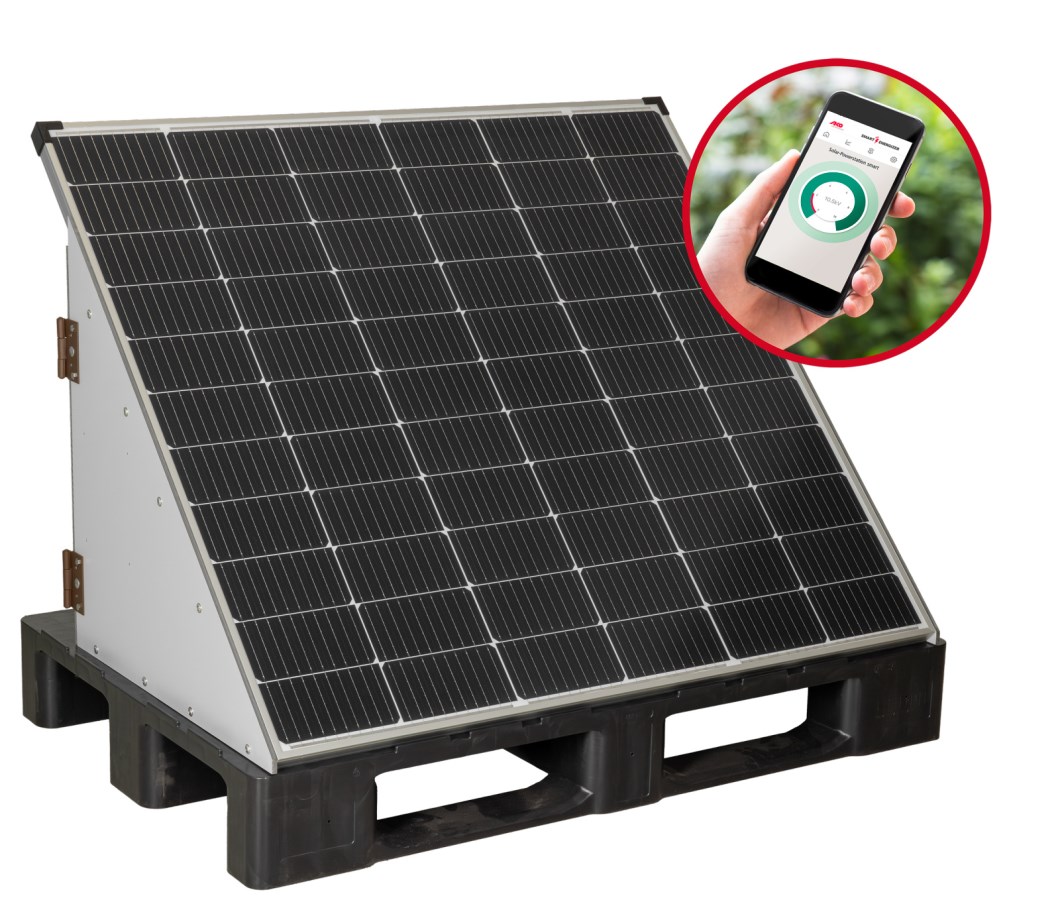

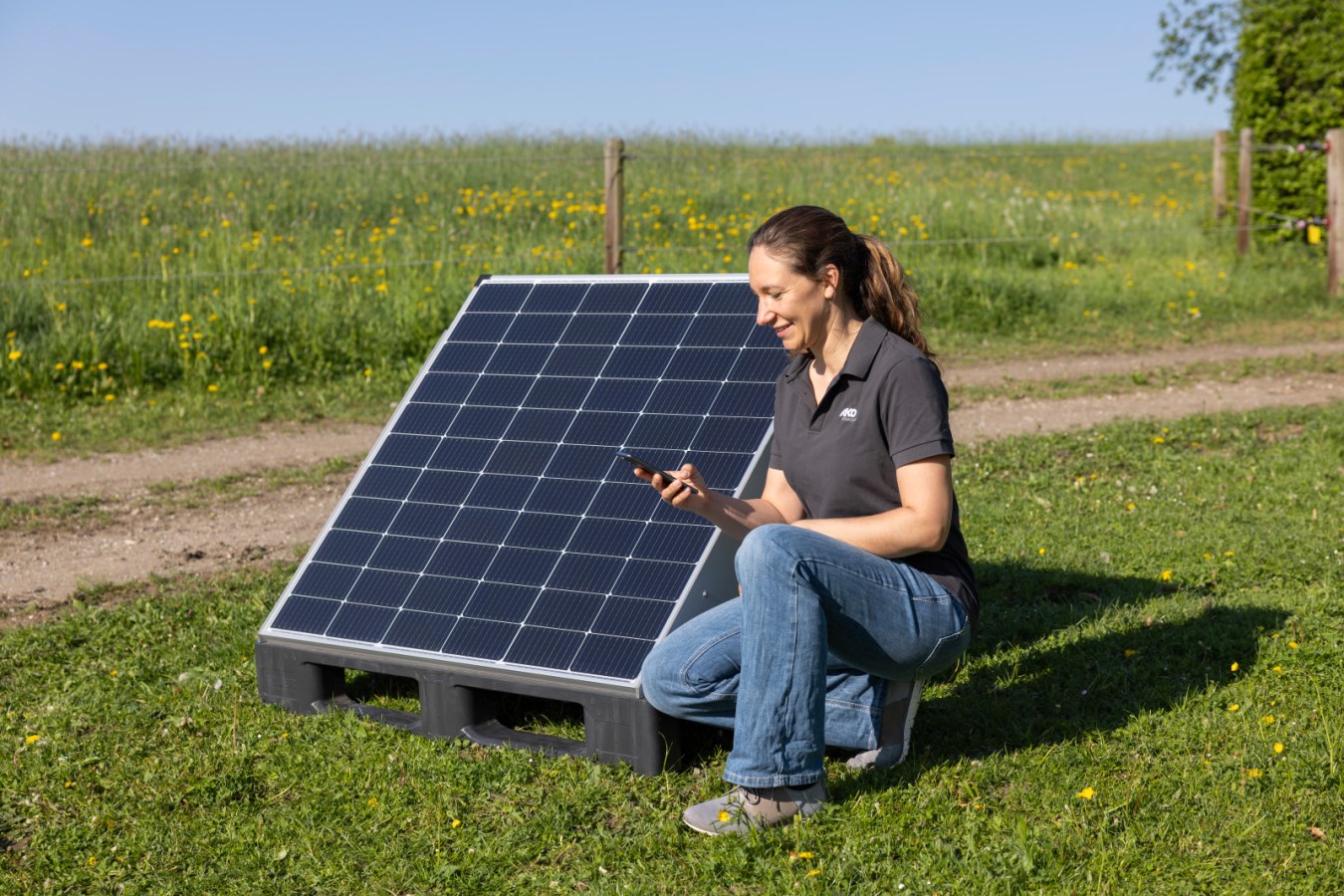

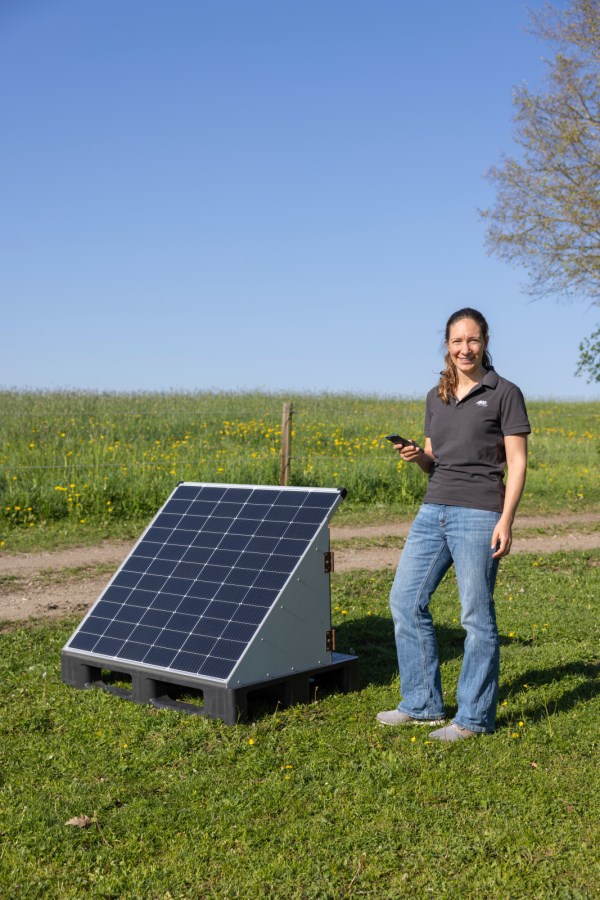

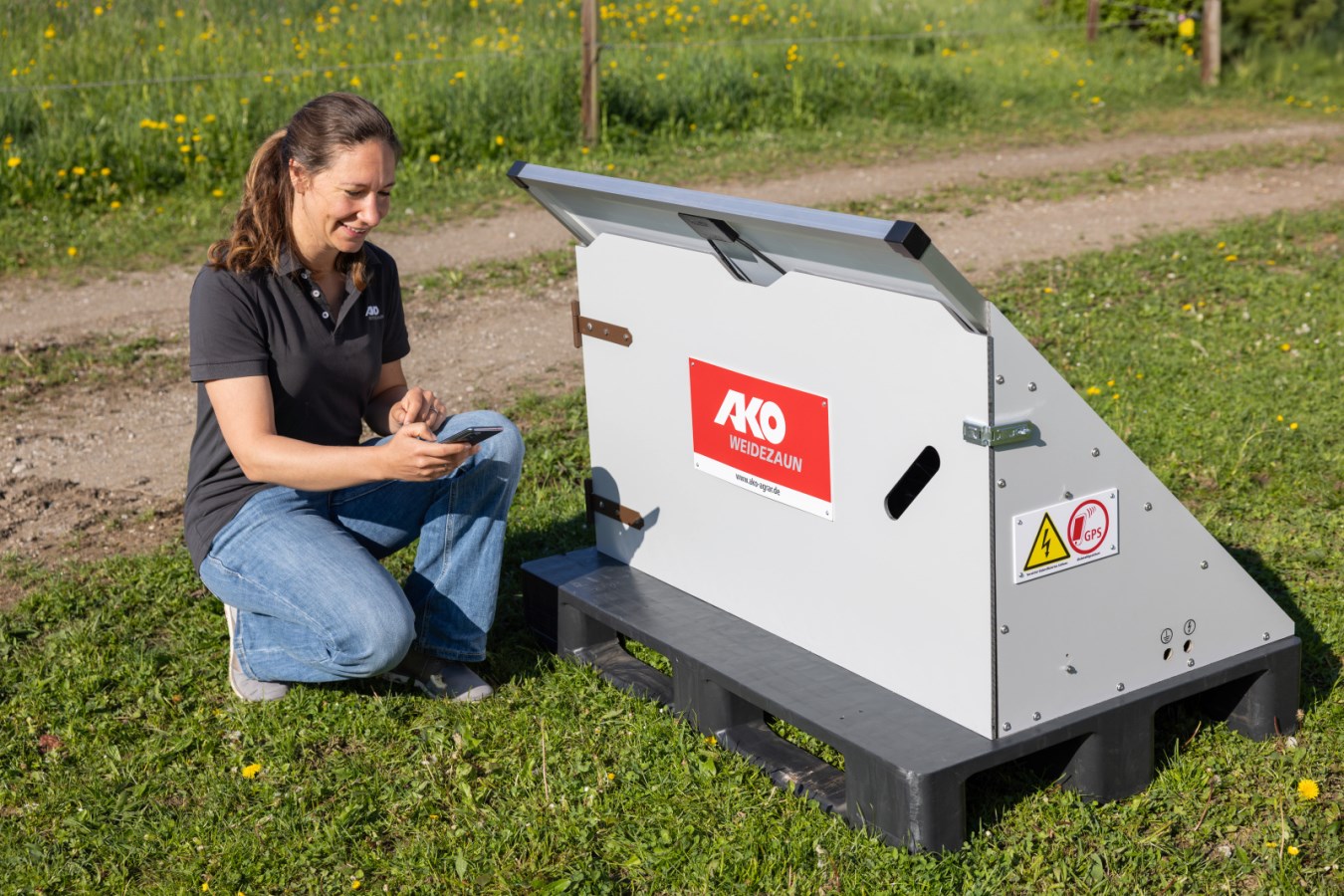

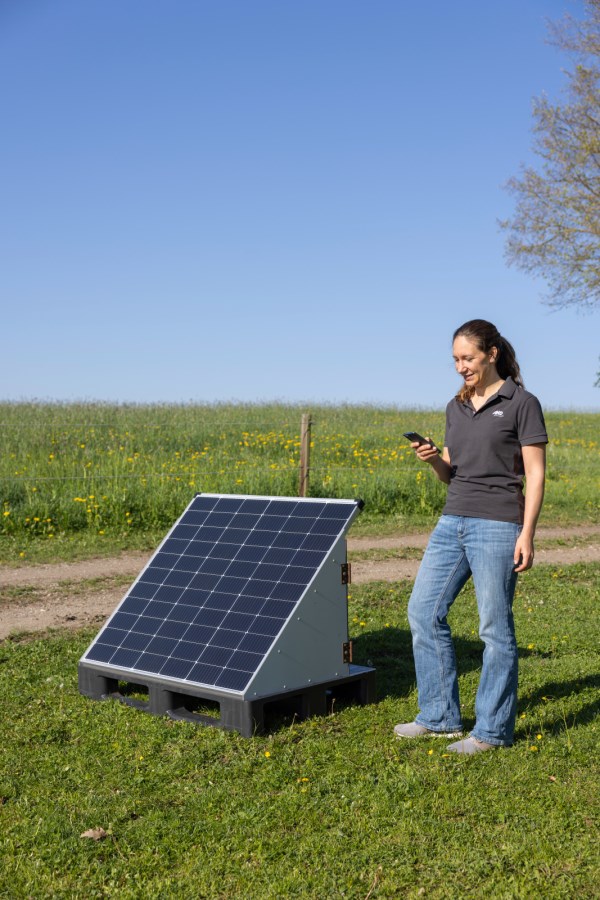

distance-neutral control (ON/OFF, GPS tracking) and monitoring of fence systems by smartphone
permanently free mobile data transfer to the app

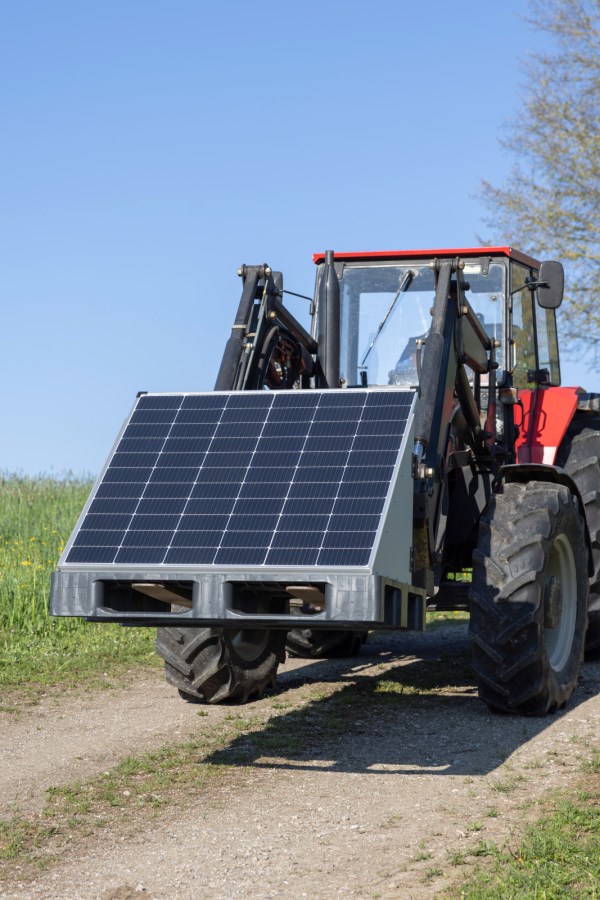

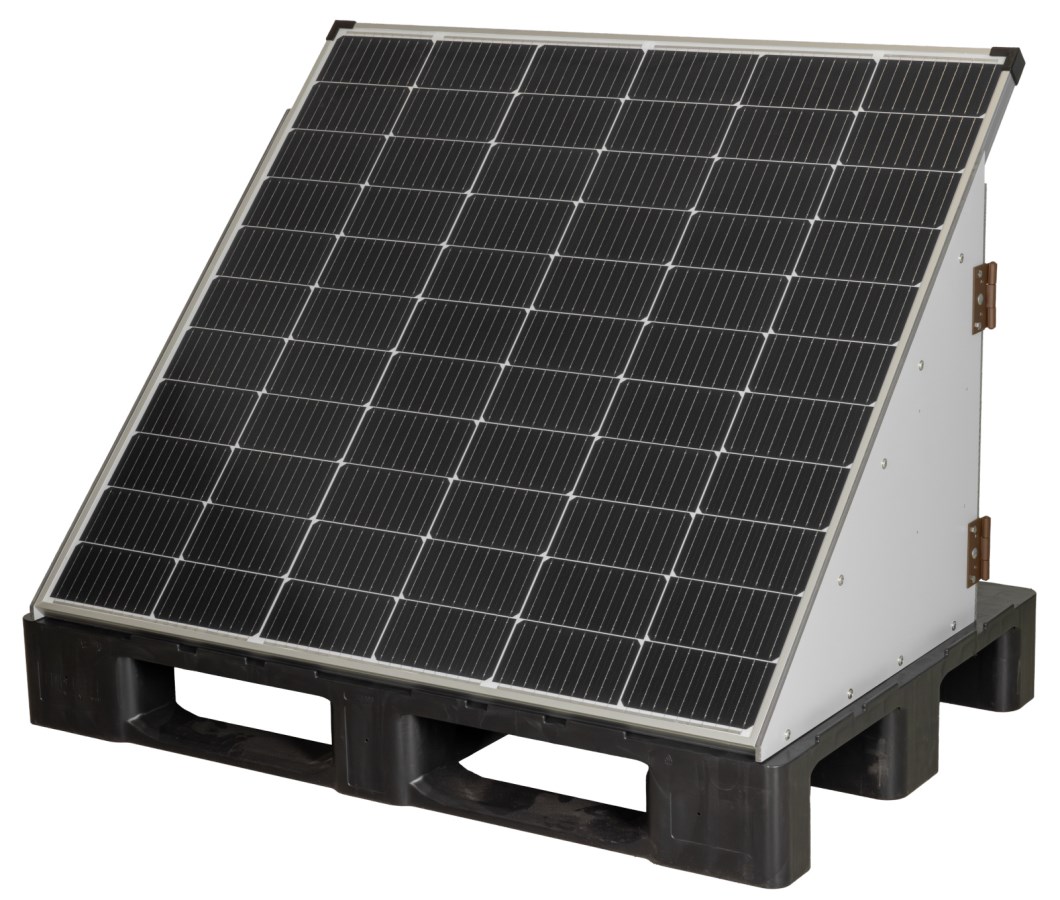

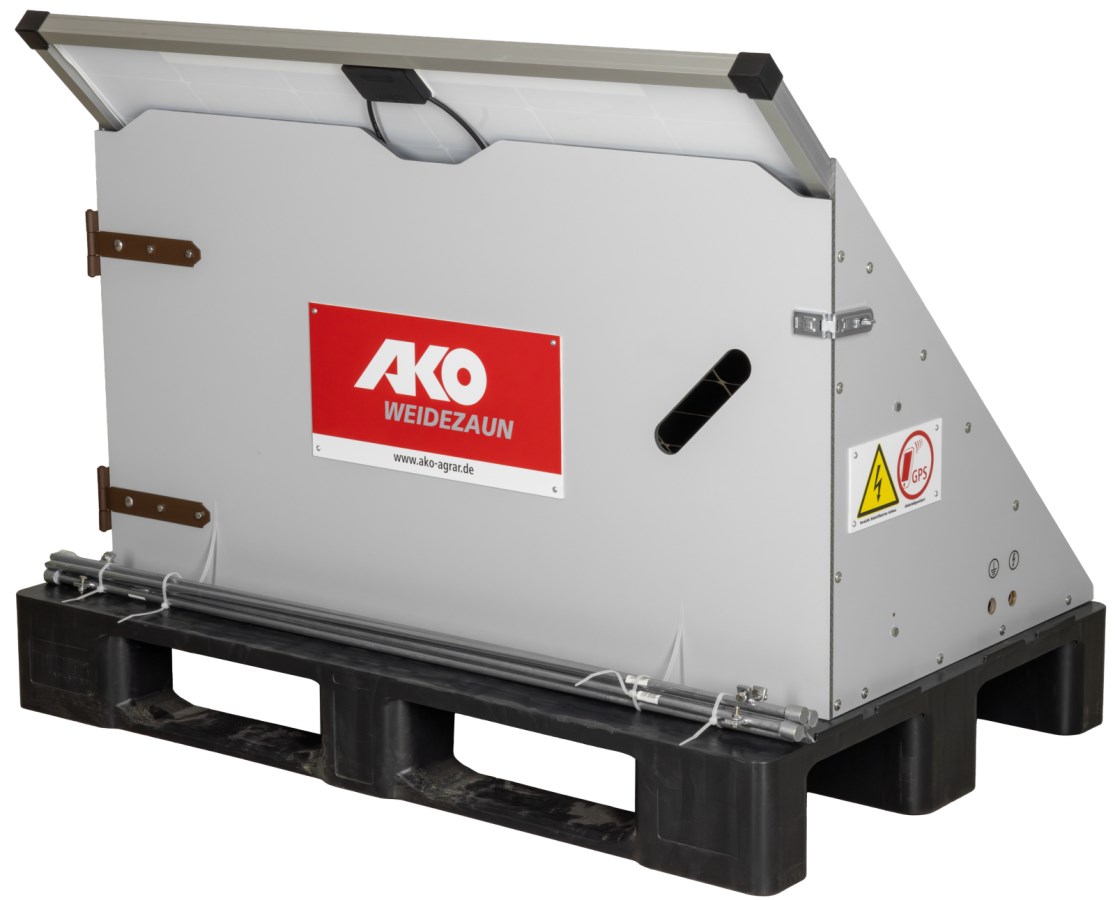

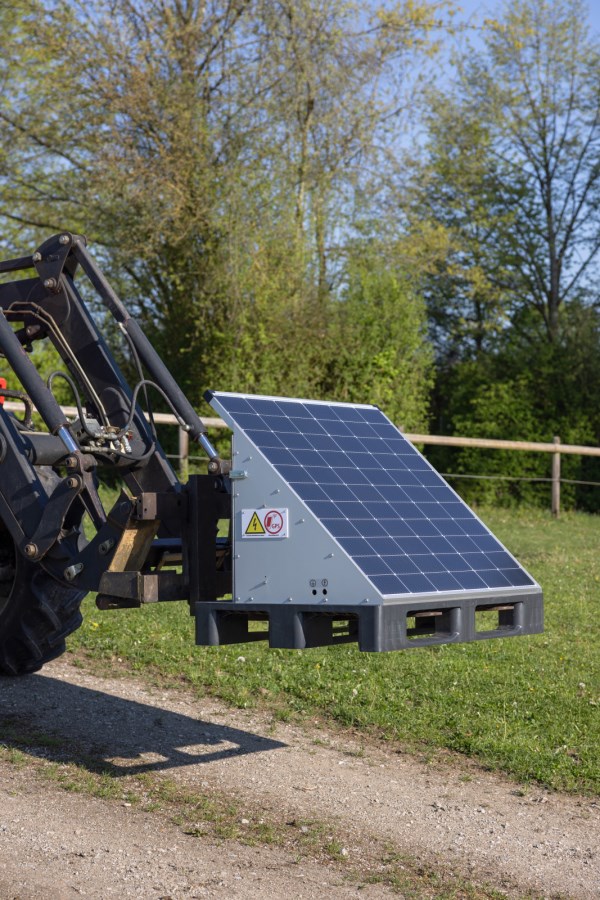

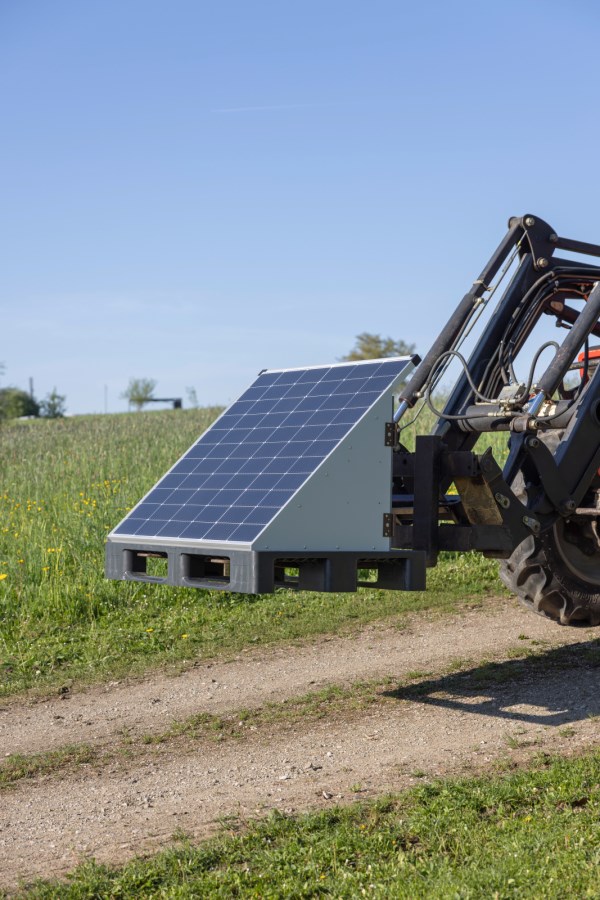

Delivery: fully assembled on a plastic Euro pallet (120 x 80 cm) - only needs to be connected to earth and fence.

441101: 250 Watt Solar-PowerStation smart including Fence Device Duo Power Xi 8000 smart (372879)

441103: 250 Watt Solar-PowerStation smart including Fence Device Power Station Xi 15000 smart (372936)

Items

Ref. no.	Description	PU
441101	XL incl. smart fence device (12 Joule input), 1 battery	1
441101-0	XL without fence device, incl. 1 battery	1
441103	XXL incl. smart fence device (20 Joule input), 2 batteries	1
441103-0	XXL without fence device, incl. 2 batteries	1

Model
smart
Ref. no.	441101
Stored Energy	12 J
max. discharge energy	8 J
max. voltage	11200 V
Voltage in Open Circuit	10200 V
Voltage at 500 Ohms	8700 V
theoretical fence length as per VDE	240 km
max. fence length without vegetation	50 km
max. fence length with medium vegetation	17 km
max. fence length with high vegetation	7 km
Approx. Number of Electrifiable Nets	30
Qty 1 m earth posts	6
Qty 2 m earth posts	3
Power Consumption	165 mA - 570 mA
smart
Ref. no.	441101-0
smart
Ref. no.	441103
Stored Energy	20 J
max. discharge energy	15 J
max. voltage	11200 V
Voltage in Open Circuit	10200 V
Voltage at 500 Ohms	8900 V
theoretical fence length as per VDE	350 km
max. fence length without vegetation	80 km
max. fence length with medium vegetation	22 km
max. fence length with high vegetation	14 km
Approx. Number of Electrifiable Nets	40
Qty 1 m earth posts	6
Power Consumption	410 mA - 1170 mA
smart
Ref. no.	441103-0

Model	Ref. no.	Stored Energy	max. discharge energy	max. voltage	Voltage in Open Circuit	Voltage at 500 Ohms	theoretical fence length as per VDE	max. fence length without vegetation	max. fence length with medium vegetation	max. fence length with high vegetation	Approx. Number of Electrifiable Nets	Qty 1 m earth posts	Qty 2 m earth posts	Power Consumption
smart	441101	12 J	8 J	11200 V	10200 V	8700 V	240 km	50 km	17 km	7 km	30	6	3	165 mA - 570 mA
smart	441101-0
smart	441103	20 J	15 J	11200 V	10200 V	8900 V	350 km	80 km	22 km	14 km	40	6		410 mA - 1170 mA
smart	441103-0

Model	smart	smart	smart	smart
Ref. no.	441101	441101-0	441103	441103-0
Stored Energy	12 J		20 J
max. discharge energy	8 J		15 J
max. voltage	11200 V		11200 V
Voltage in Open Circuit	10200 V		10200 V
Voltage at 500 Ohms	8700 V		8900 V
theoretical fence length as per VDE	240 km		350 km
max. fence length without vegetation	50 km		80 km
max. fence length with medium vegetation	17 km		22 km
max. fence length with high vegetation	7 km		14 km
Approx. Number of Electrifiable Nets	30		40
Qty 1 m earth posts	6		6
Qty 2 m earth posts	3
Power Consumption	165 mA - 570 mA		410 mA - 1170 mA

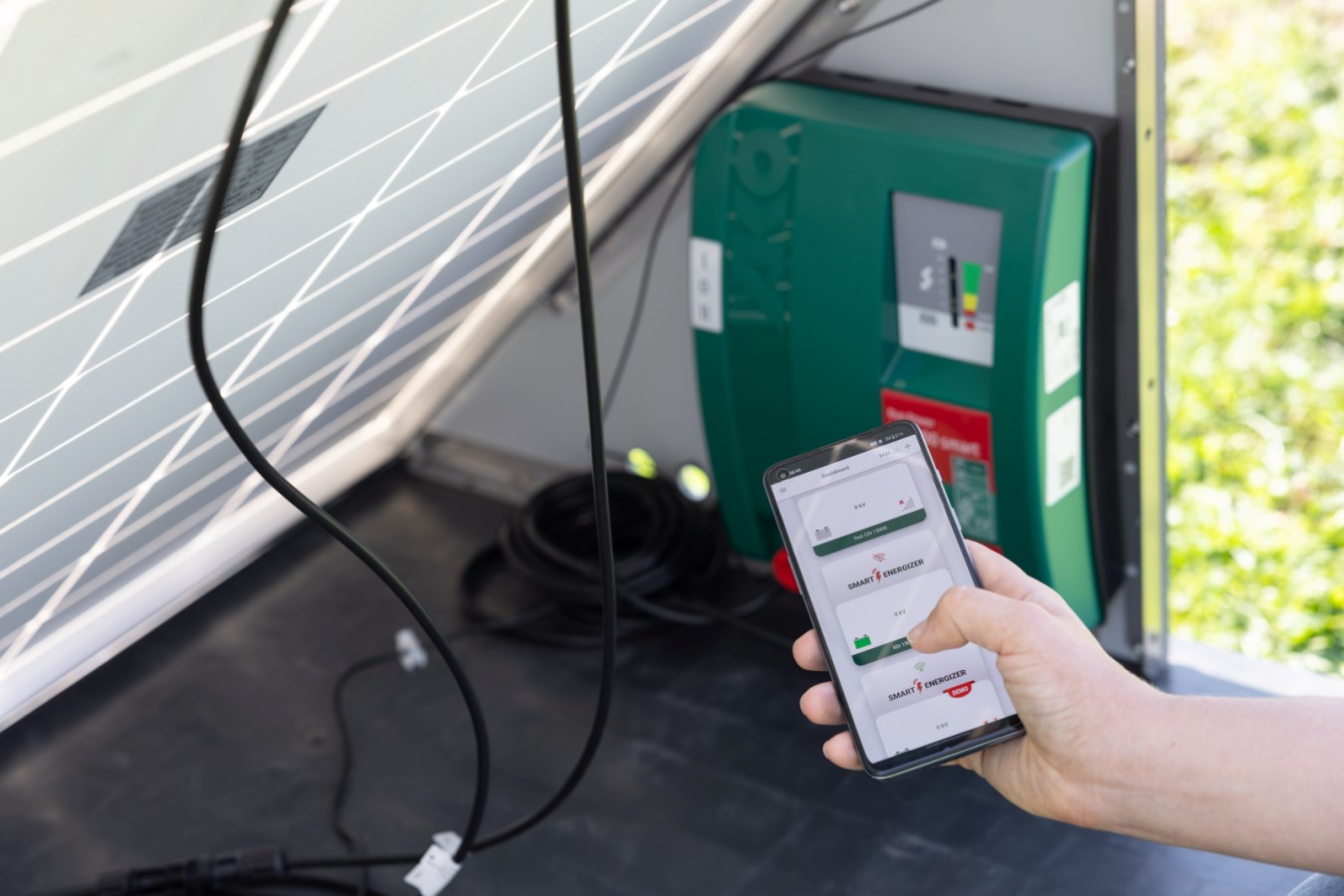

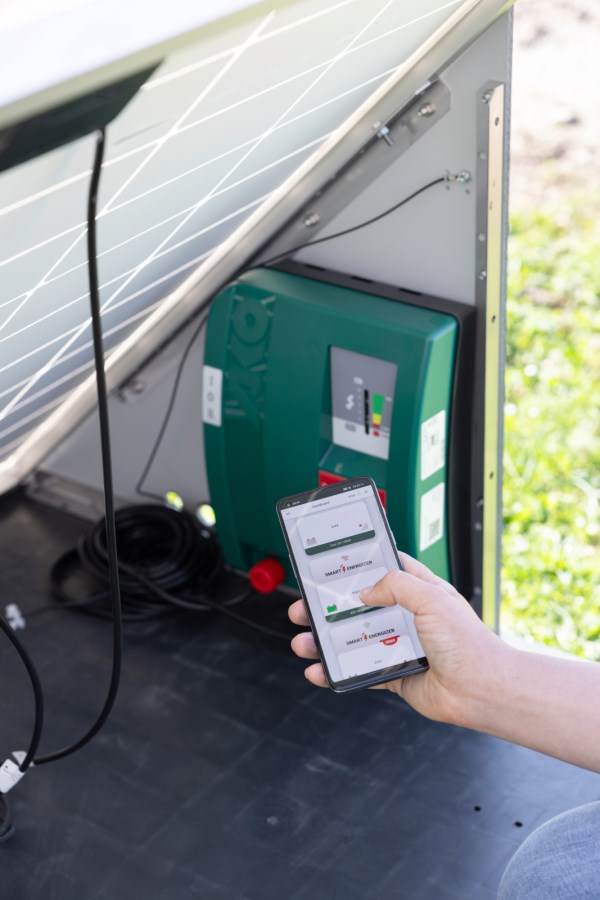

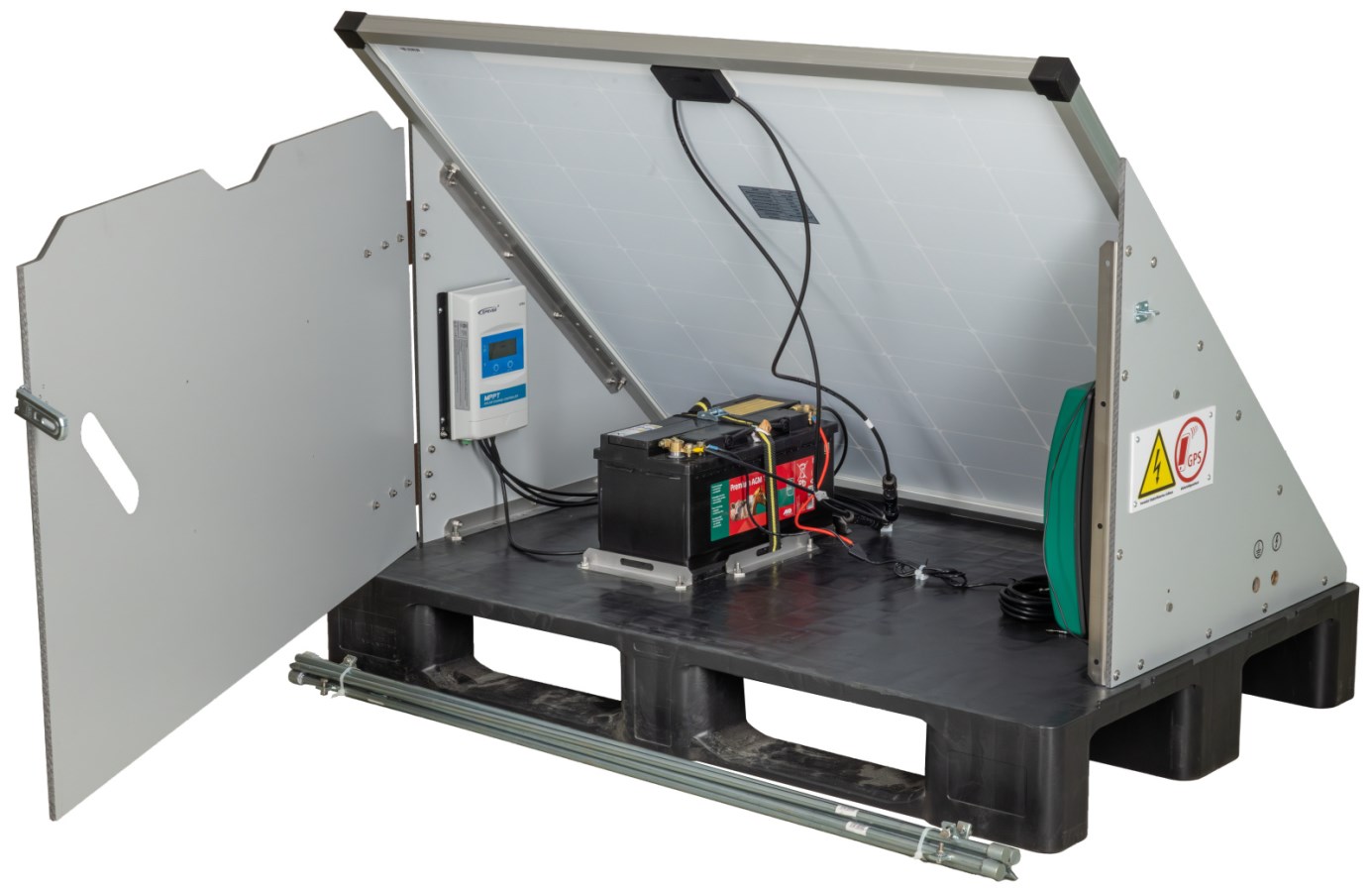

1 x DUO Fence Device 12/230 Volt with Smart Function

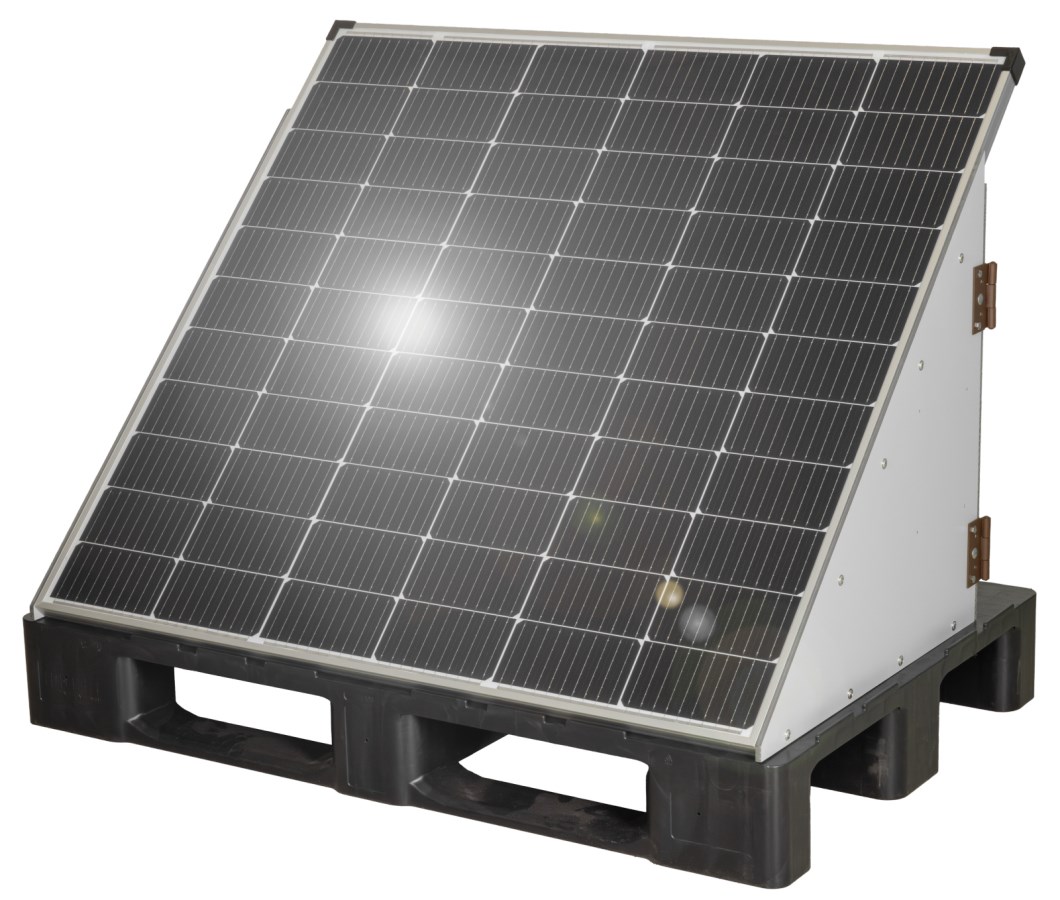

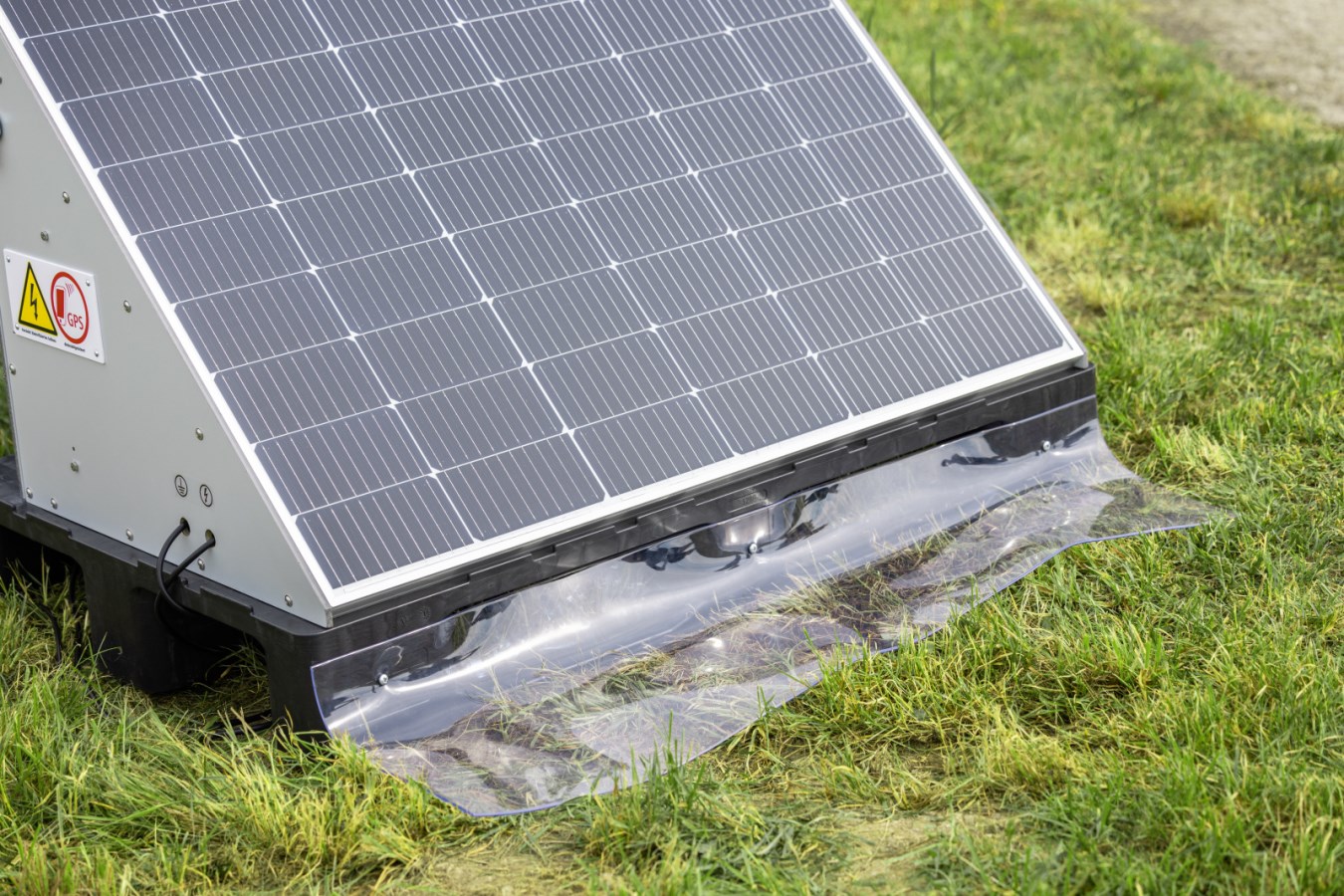

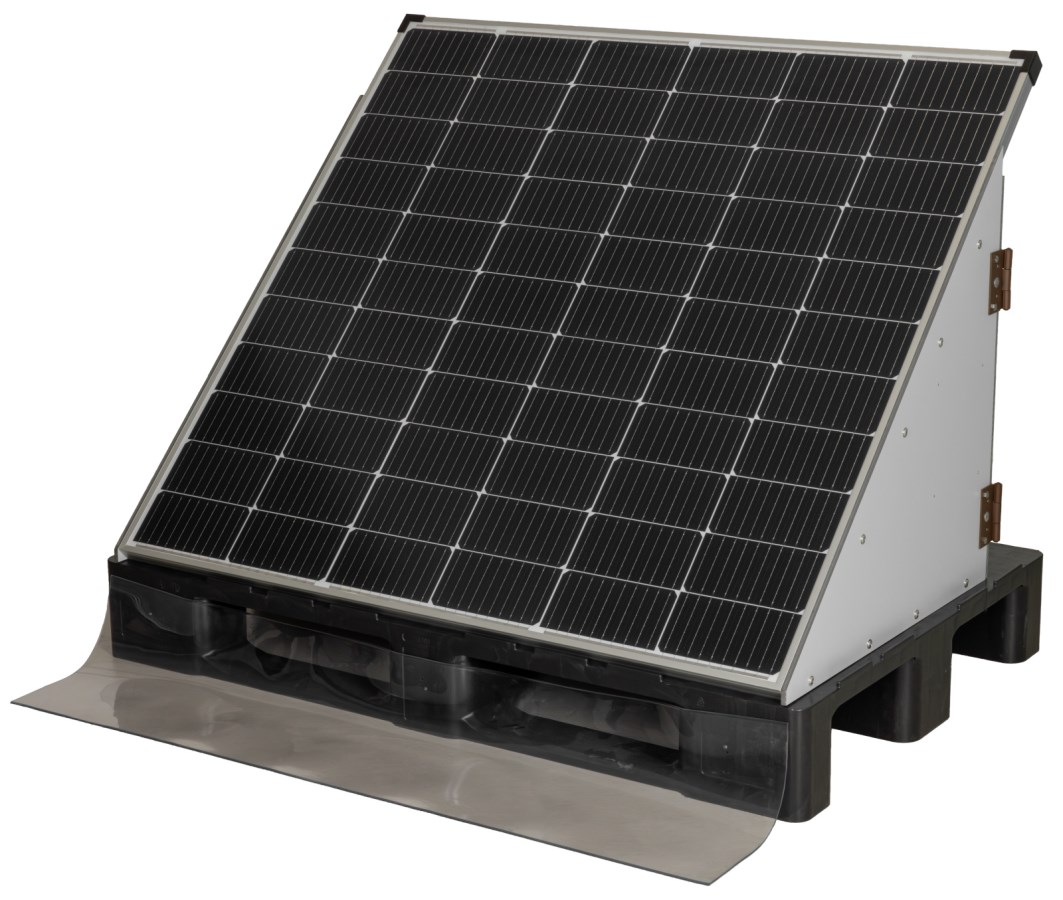

1 x 250 Watt solar module
12 V battery (110 Ah) with charge controller
6 x ground rods and earth or fence connection cable

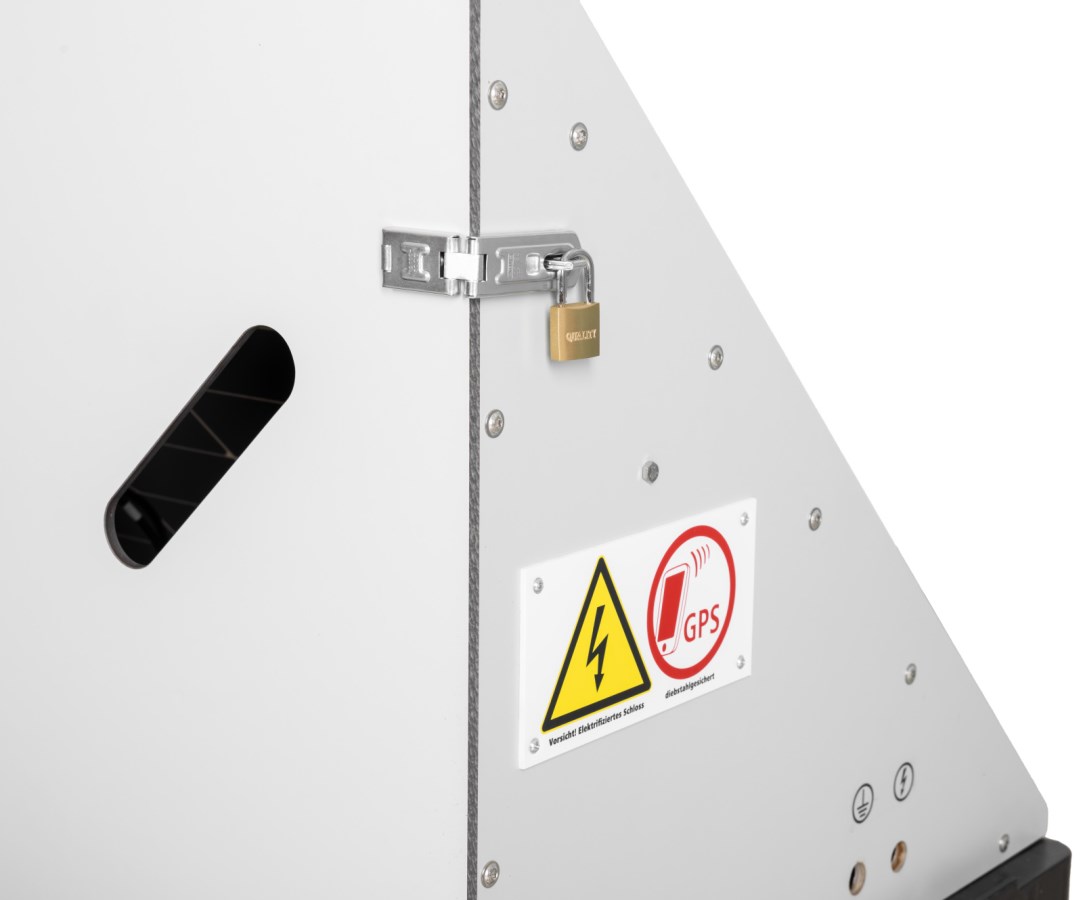

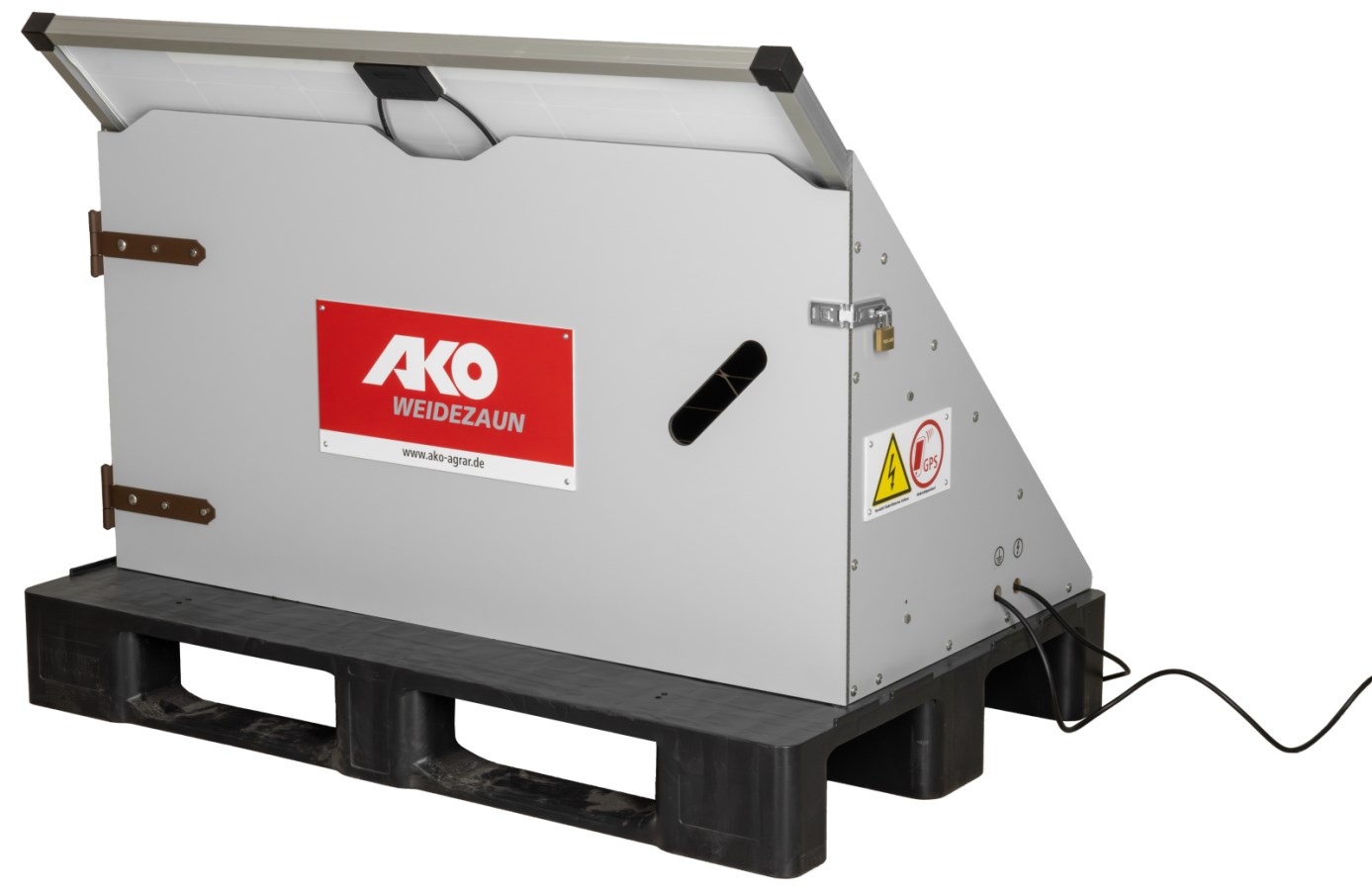

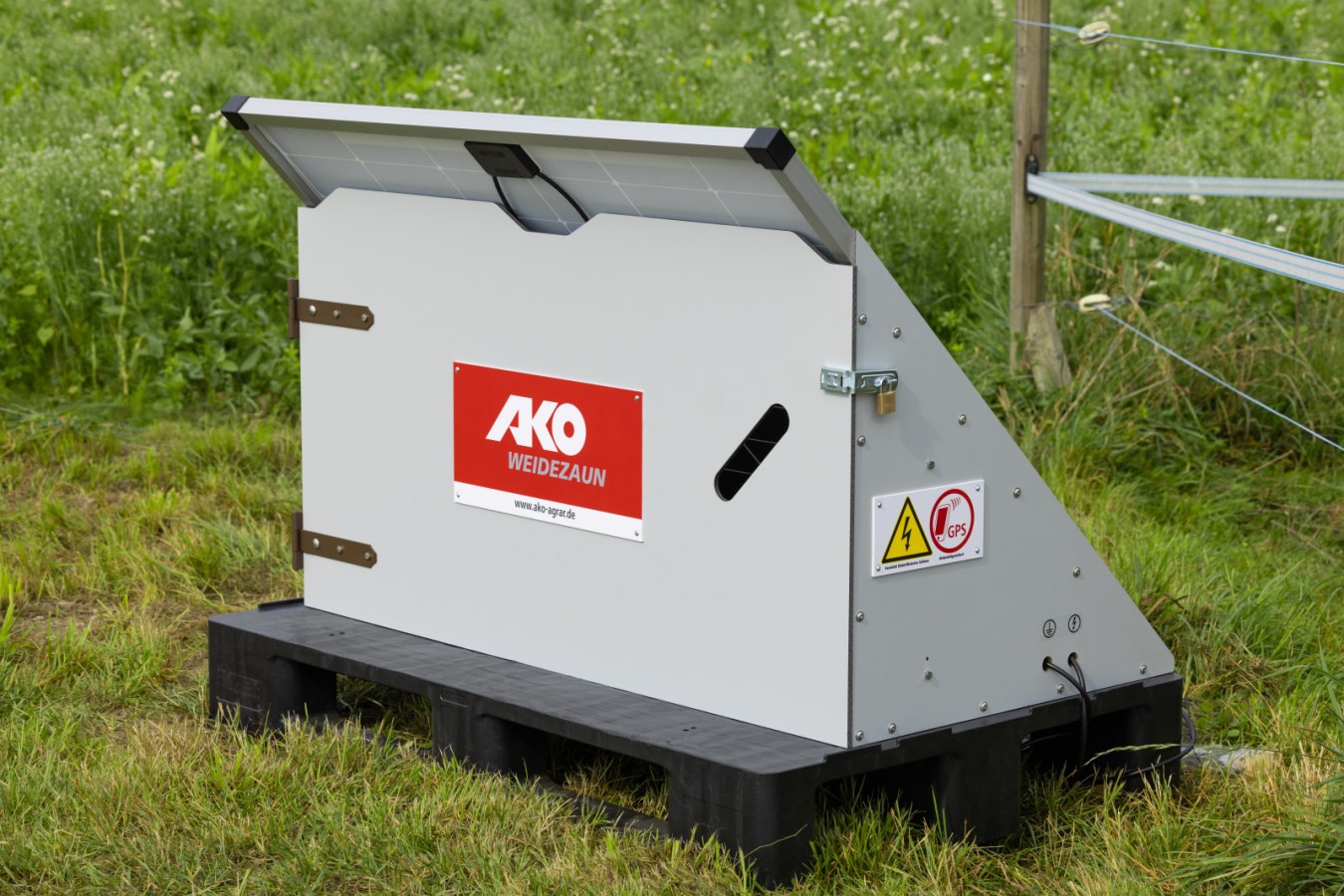

1 x high-quality, weather-resistant and robust HPL panel cladding
1 x electrifiable closure option
