Compact Power B180

  • highly effective 9/12 Volt fence device for mobile use
  • ideal for smaller horses and cattle pastures, also suitable for small animals such as dogs and cats
  • the cost-efficient ‘beginner's’ 9 V battery energiser for mobile use in small pastures with little vegetation
  • now also available in the on-trend colours of pink and petrol
  • 5-year warranty

multi-colour LED bar graph display for output voltage and battery control

Items
Ref. no.PUPallet
372018154 PAL
372018-PETROL154 PAL
372018-PINK154 PAL

Impact force and fence length: the AKO Compact Power B 180 supplies 0.26 J of charging energy and 8,800 V of voltage. It is ideal for fences up to 3 km without vegetation. INFO: remove vegetation regularly in order to avoid discharges and to increase the protective security

Power supply and animals: the device can be operated with a 9 V battery or optional 12 V battery (12 V connection cable item No. 44641/011 not included in the scope of delivery). Ideal for horses, cattle, domestic pigs, dogs and cats

Functions: the fence device features an easy-to-operate, large, waterproof magnetic rotary switch (1 = ON, OFF = 0). The device is very easy to use and controlled using the latest microprocessor technology

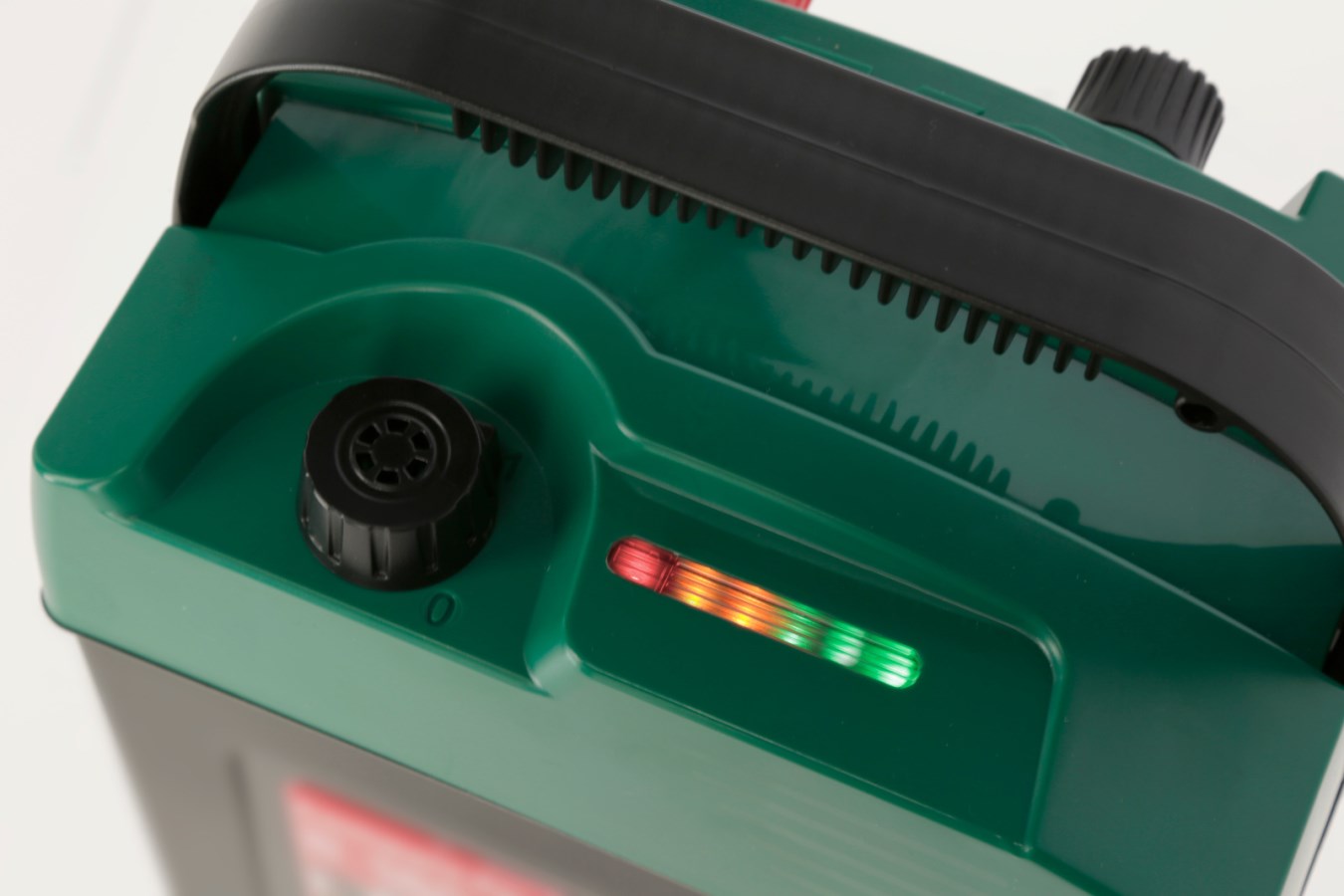

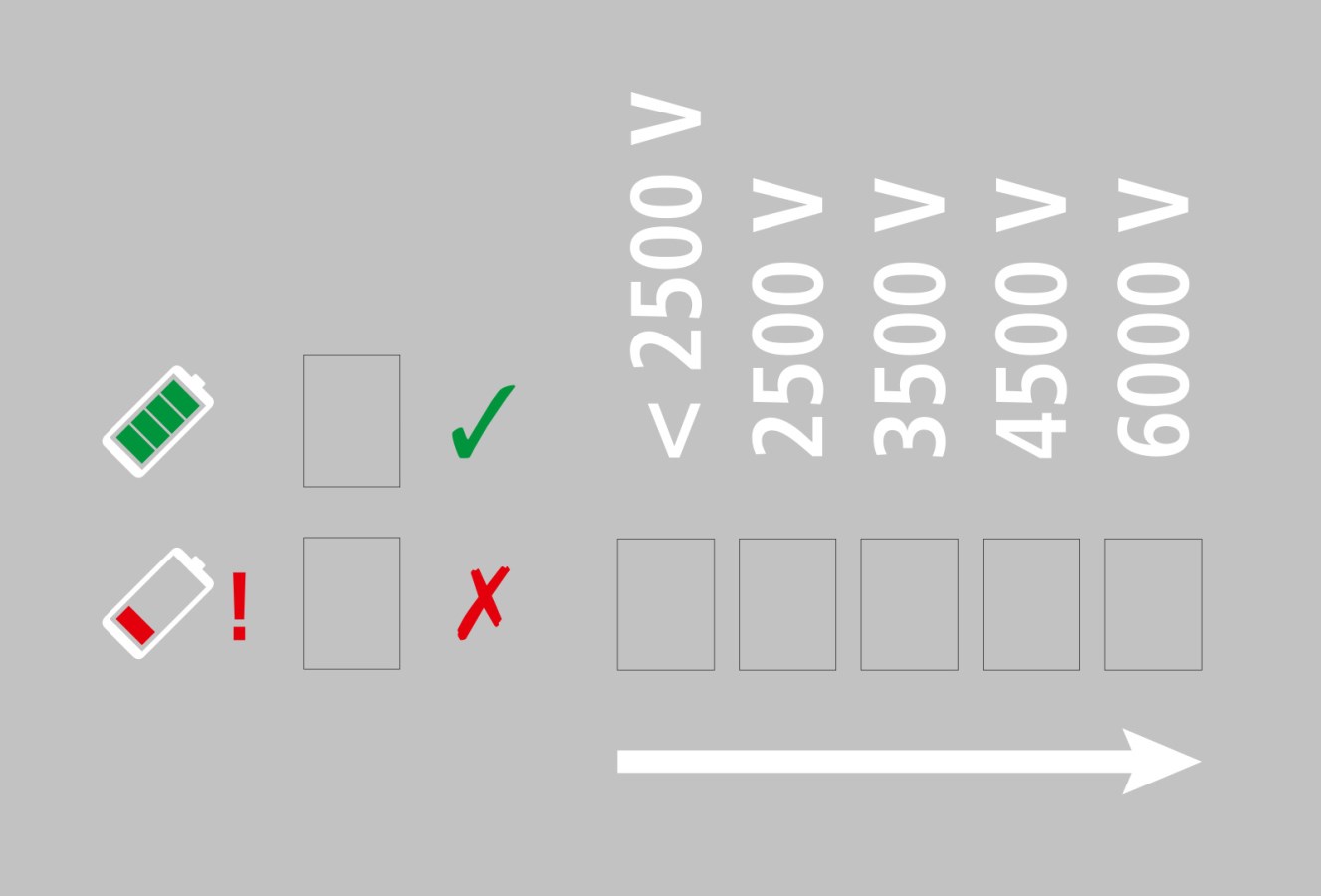

Display: the fence device has a multi-coloured LED bar graph display (6 LEDs). A red LED indicates the battery status, while the other 5 (red/yellow/green) represent the output voltage from 0 V to over 6,000 V

Housing and assembly: the robust housing of the fence device is made from impact-resistant, UV-resistant plastic, making it weather-proof and long-lasting. The carrying handle allows mobile and flexible use

  • 9 volt battery units with effective output
  • visual check for fence insulation and battery voltage
  • easy handling
  • allows for optional operation with 12 V battery – with deep discharge protection
  • easy to transport
  • 6 daylight bright LEDs (bar graph display) for fence and battery monitoring
  • includes robust carry handle
  • microprocessor controlled
  • with large on/off (magnetic) rotary switch
  • robust, impact-resistant, UV-resistant and weather-resistant housing thanks to the use of high-quality plastics
  • corresponds to applicable EU safety standards

Model
B180
Ref. no.372018
Stored Energy0.26 J
max. discharge energy0.18 J
max. voltage8800 V
Voltage in Open Circuit8400 V
Voltage at 500 Ohms2700 V
theoretical fence length as per VDE6 km
max. fence length without vegetation3 km
max. fence length with medium vegetation0.5 km
Qty 1 m earth posts1
B180
Ref. no.372018-PETROL
Stored Energy0.26 J
max. discharge energy0.18 J
max. voltage8800 V
Voltage in Open Circuit8400 V
Voltage at 500 Ohms2700 V
theoretical fence length as per VDE6 km
max. fence length without vegetation3 km
max. fence length with medium vegetation0.5 km
Qty 1 m earth posts1
B180
Ref. no.372018-PINK
Stored Energy0.26 J
max. discharge energy0.18 J
max. voltage8800 V
Voltage in Open Circuit8400 V
Voltage at 500 Ohms2700 V
theoretical fence length as per VDE6 km
max. fence length without vegetation3 km
max. fence length with medium vegetation0.5 km
Qty 1 m earth posts1
ModelB180B180B180
Ref. no.372018372018-PETROL372018-PINK
Stored Energy0.26 J0.26 J0.26 J
max. discharge energy0.18 J0.18 J0.18 J
max. voltage8800 V8800 V8800 V
Voltage in Open Circuit8400 V8400 V8400 V
Voltage at 500 Ohms2700 V2700 V2700 V
theoretical fence length as per VDE6 km6 km6 km
max. fence length without vegetation3 km3 km3 km
max. fence length with medium vegetation0.5 km0.5 km0.5 km
Qty 1 m earth posts111

  • 1 x fence unit
  • 1 x fence / ground connector cable
  • 1 x installation ground rod
  • 1 x warning sign
