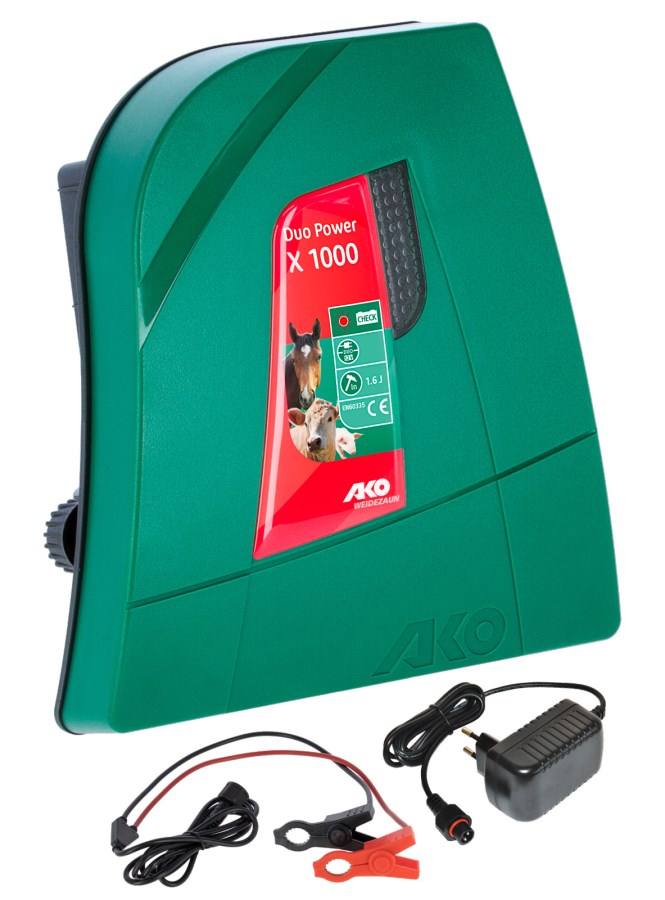

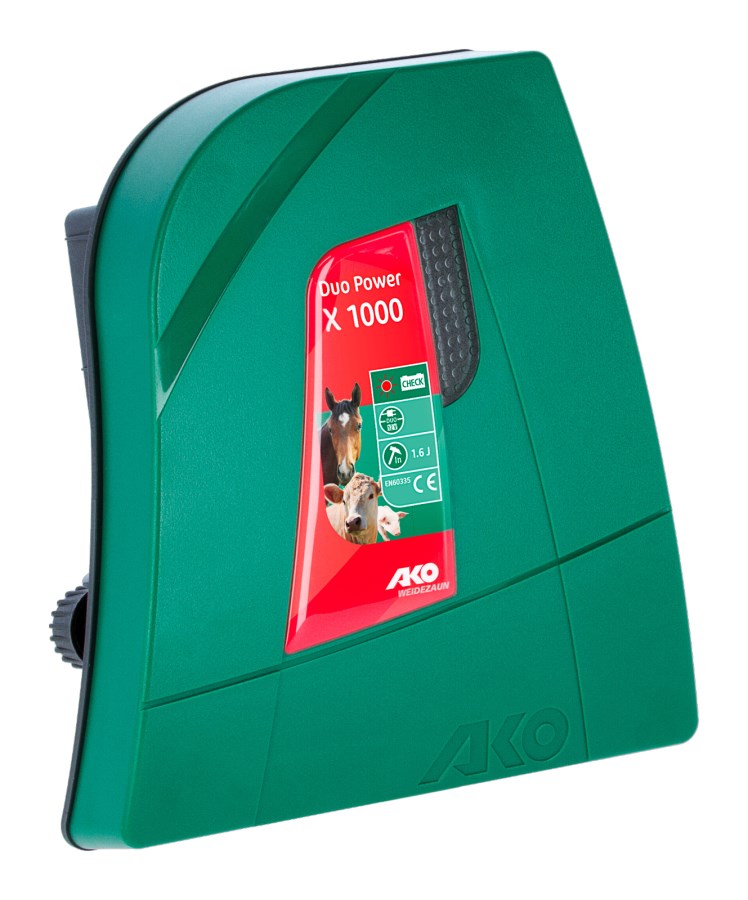

Duo Power X 1000

  • 12 V / 230 V DUO unit with effective output power
  • for short fences without vegetation
  • 5-year warranty

function control LED and visual battery warning indicator

recommended solar module: item number 375151 (15 Watt), connection directly to the 12-Volt battery, mounting e.g. on a metal box

Items
Ref. no.PUPallet
372871188 PAL
Accessories
Ref. no.DescriptionWidthDepthHeightPU
375151Solar Panel incl. Charge Controller37.5 cm2 cm37 cm1

  • optimised power consumption thanks to energy-saving mode
  • deep discharge protection with 12 V operation
  • microprocessor controlled

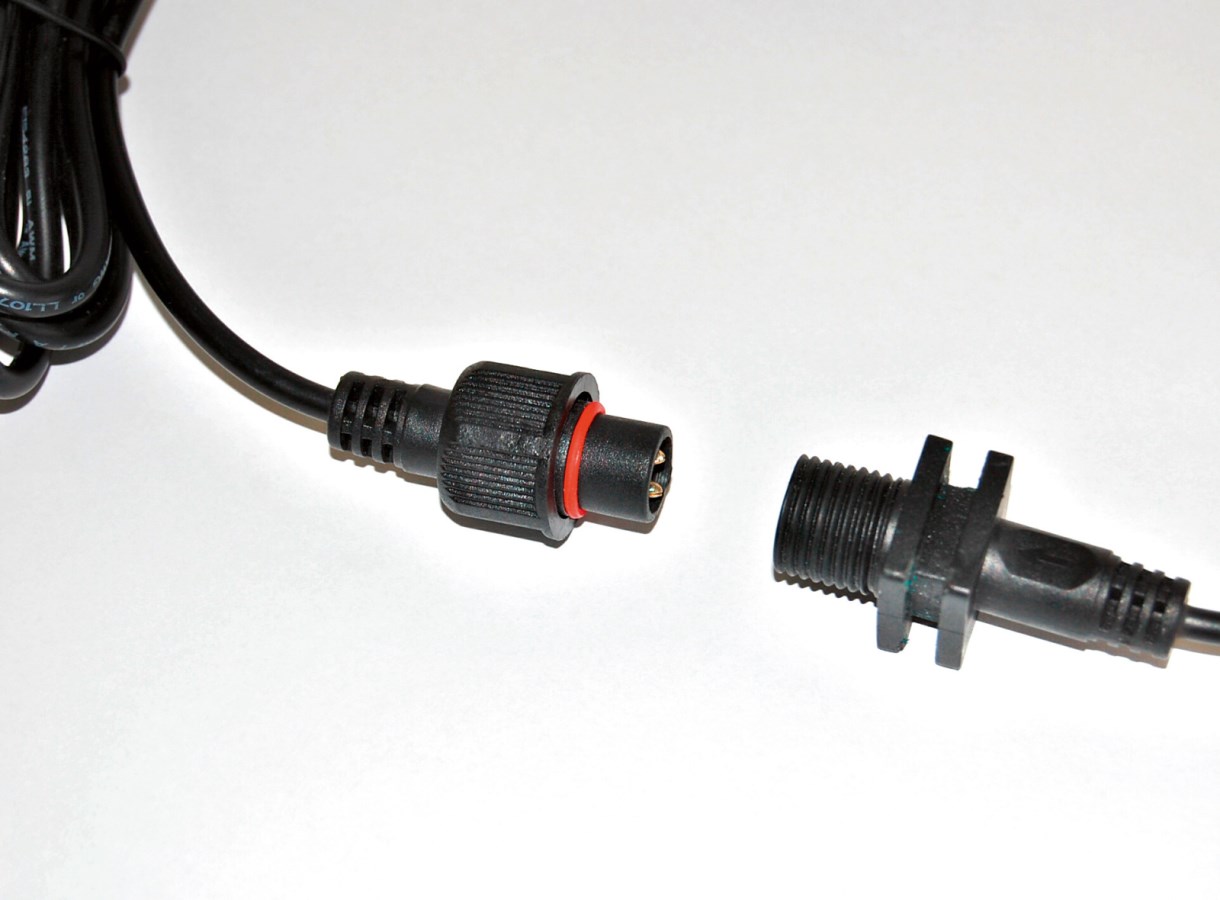

  • Plug Connector with Screw Fuse
  • robust, impact-resistant, UV-resistant and weather-resistant housing thanks to the use of high-quality plastics

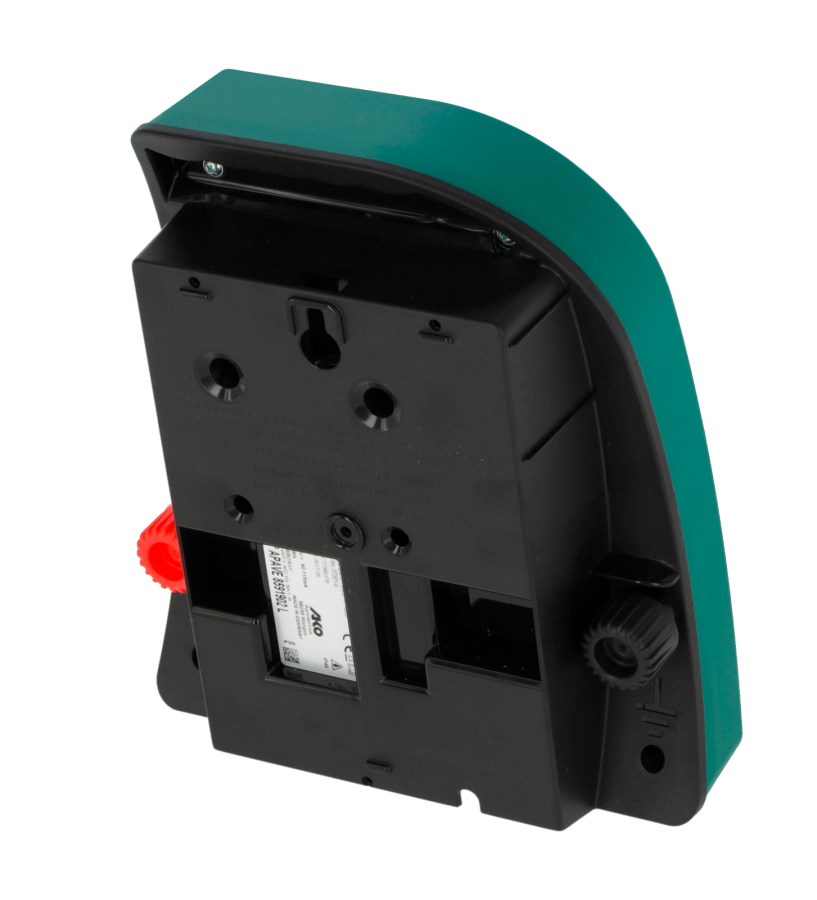

  • integrated hanging device for wall mounting
  • very bright, clearly visible LED light
  • corresponds to applicable EU safety standards
  • (suitable for metal box 44656 and 44650)

Model
X 1000
Ref. no.372871
Stored Energy1.6 J
max. discharge energy1 J
max. voltage10500 V
Voltage in Open Circuit9000 V
Voltage at 500 Ohms4400 V
theoretical fence length as per VDE35 km
max. fence length without vegetation10 km
max. fence length with medium vegetation1.5 km
max. fence length with high vegetation0.8 km
Approx. Number of Electrifiable Nets4
Qty 1 m earth posts1
Power Consumption115 mA
ModelX 1000
Ref. no.372871
Stored Energy1.6 J
max. discharge energy1 J
max. voltage10500 V
Voltage in Open Circuit9000 V
Voltage at 500 Ohms4400 V
theoretical fence length as per VDE35 km
max. fence length without vegetation10 km
max. fence length with medium vegetation1.5 km
max. fence length with high vegetation0.8 km
Approx. Number of Electrifiable Nets4
Qty 1 m earth posts1
Power Consumption115 mA

  • 1 x fence unit

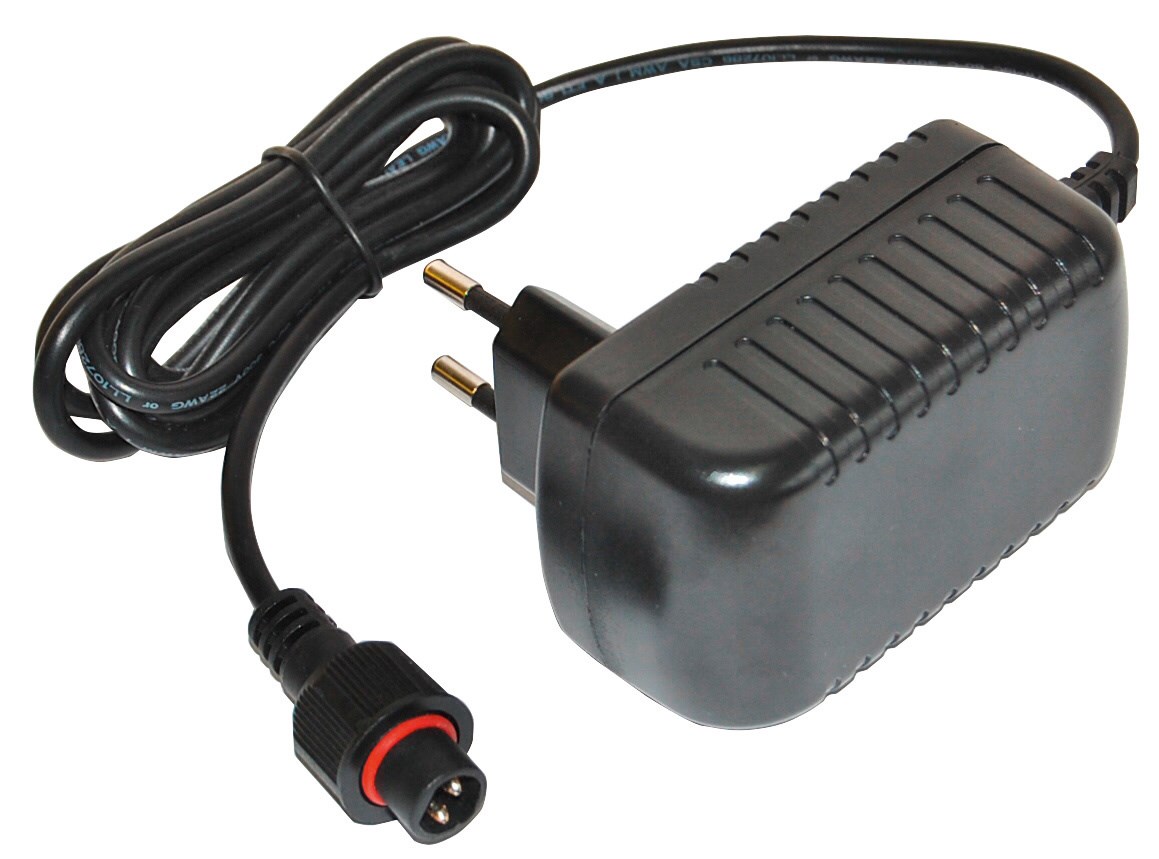

  • 1 x 230 volt power pack (371023)
  • 1 x 12 Volt connection cable (E268739)
  • 1 x ground connector cable
  • 1 x fence connector cable

Preview imageItem. No.Description372871
 AKO268861Knurled nut M8 BIG blackx
 AKO268862Knurled nut M8 BIG redx
