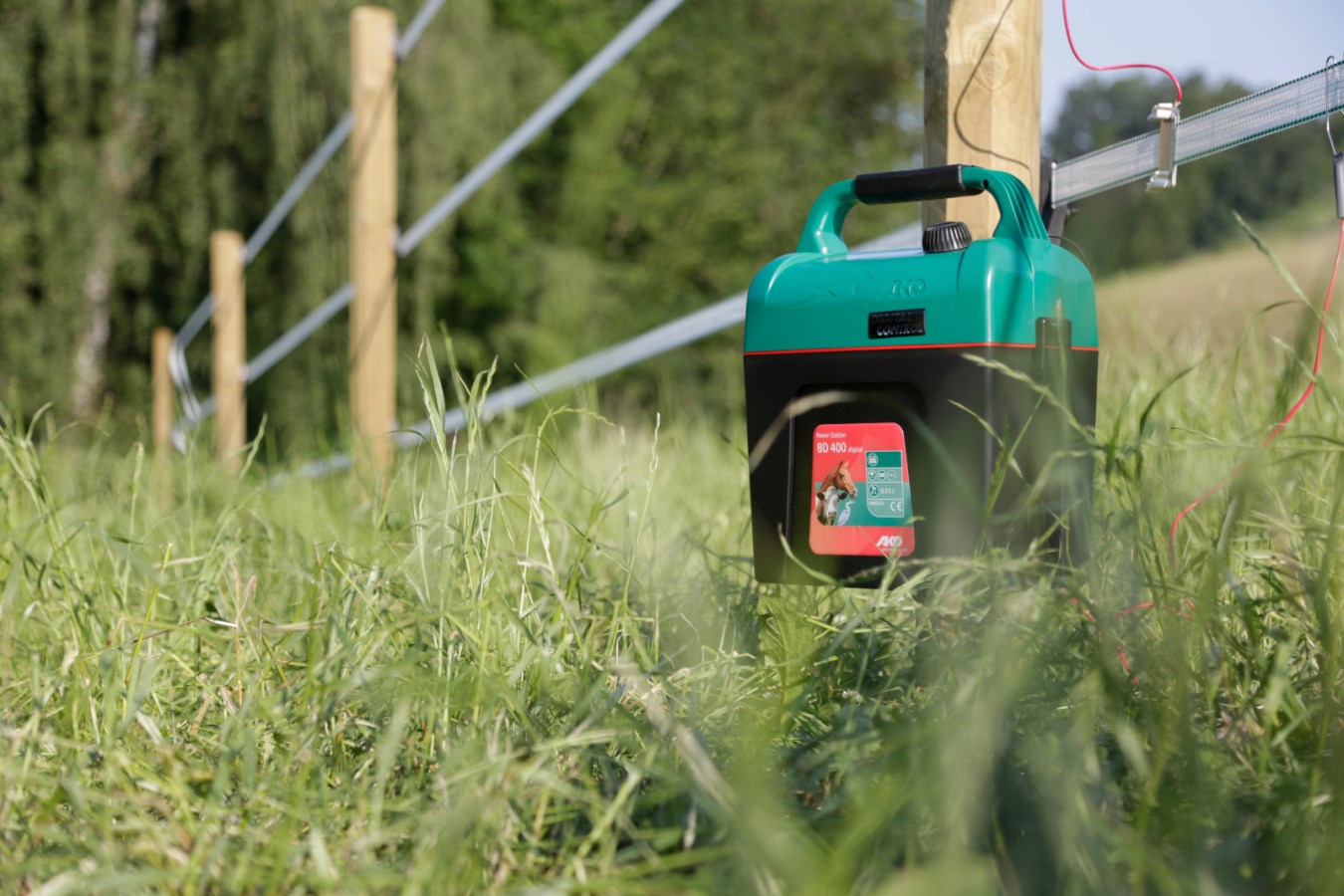

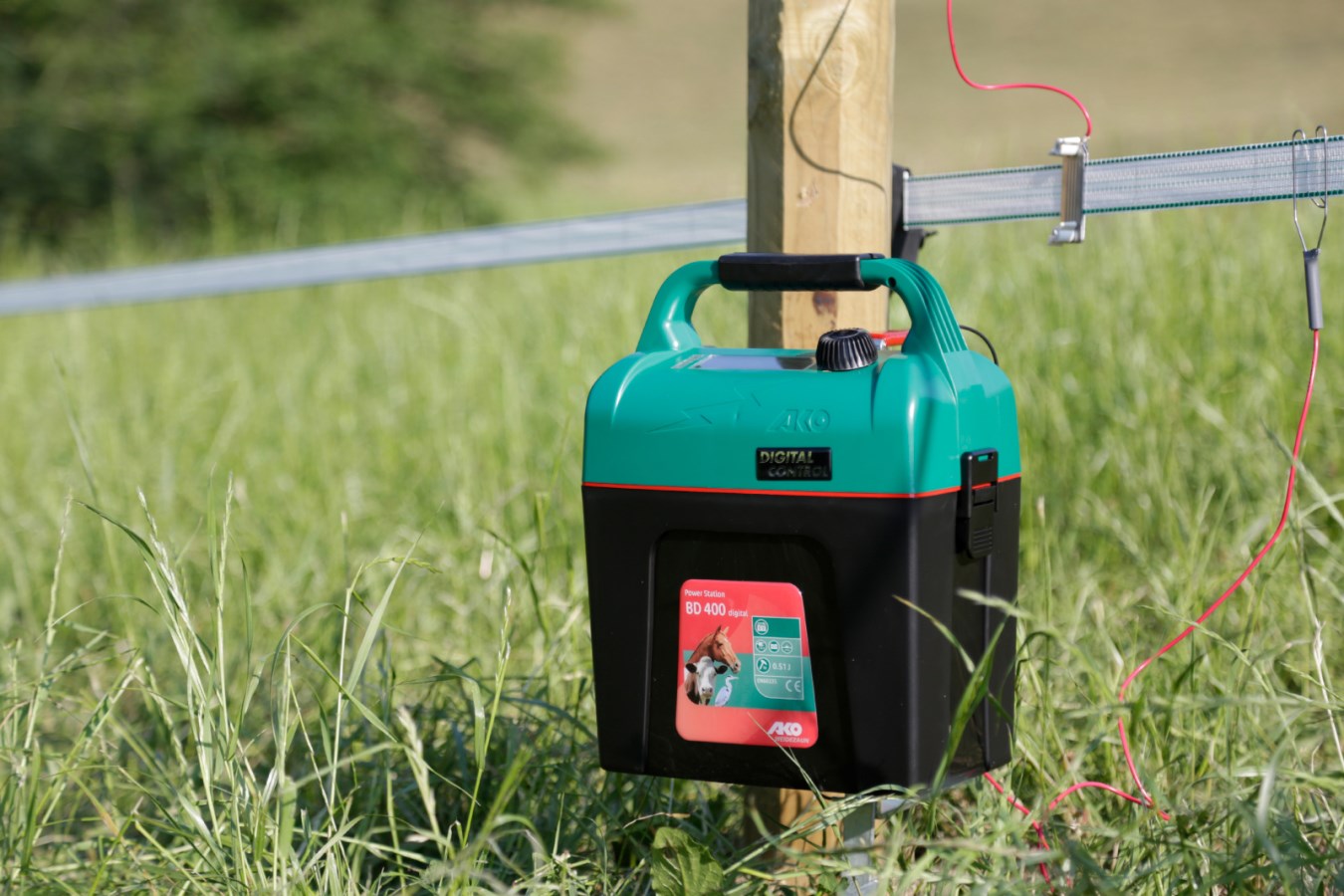

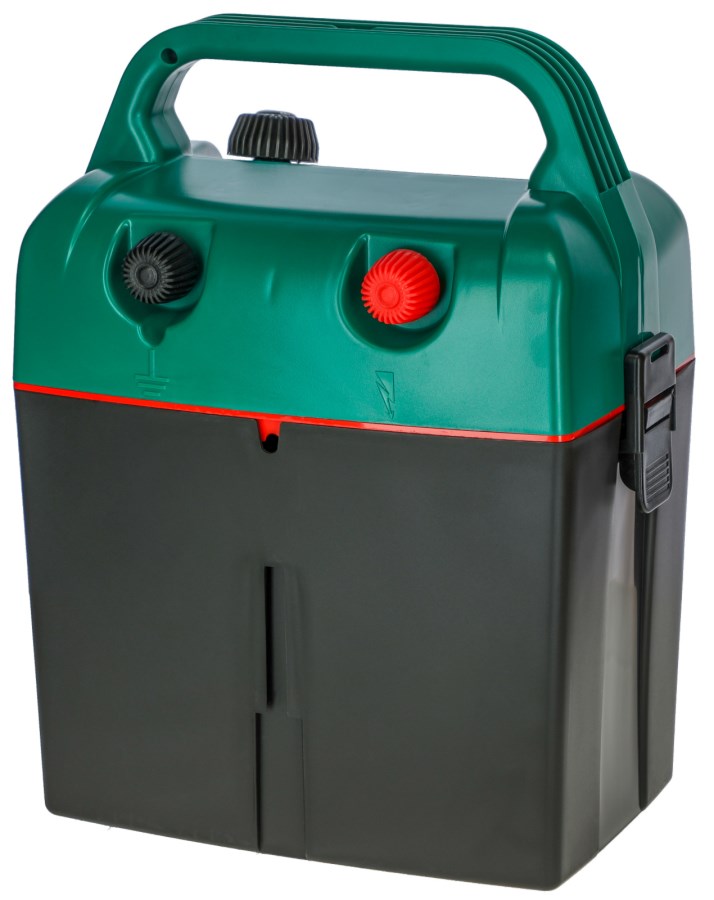

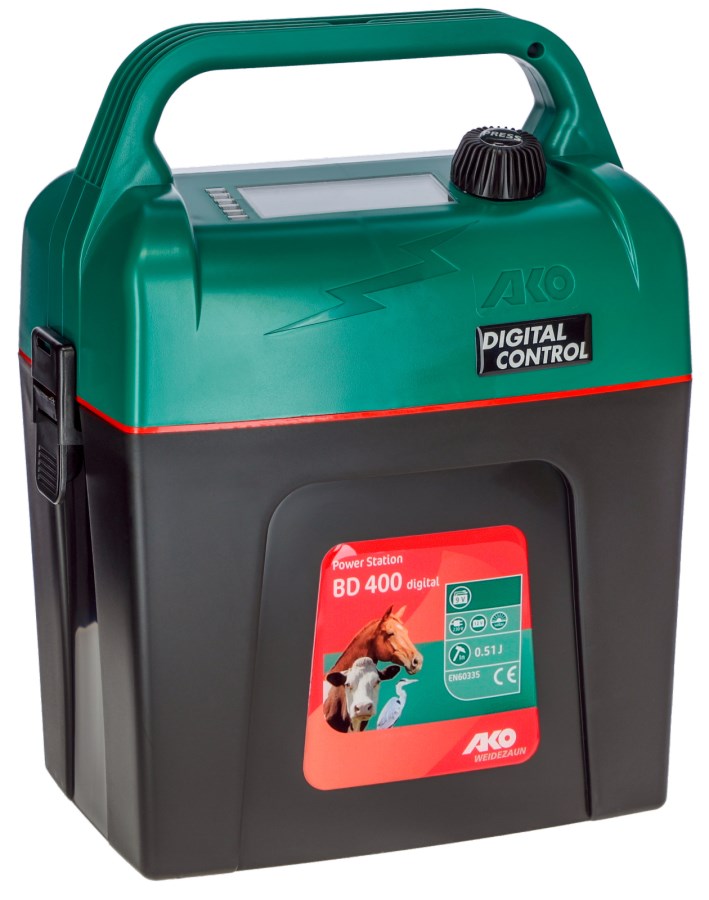

Power Station BD 400 digital

  • extremely powerful 9 V battery unit for medium fences and moderate vegetative growth
  • the perfect solution for all animal species such as horses, cattle, goats, dogs and poultry

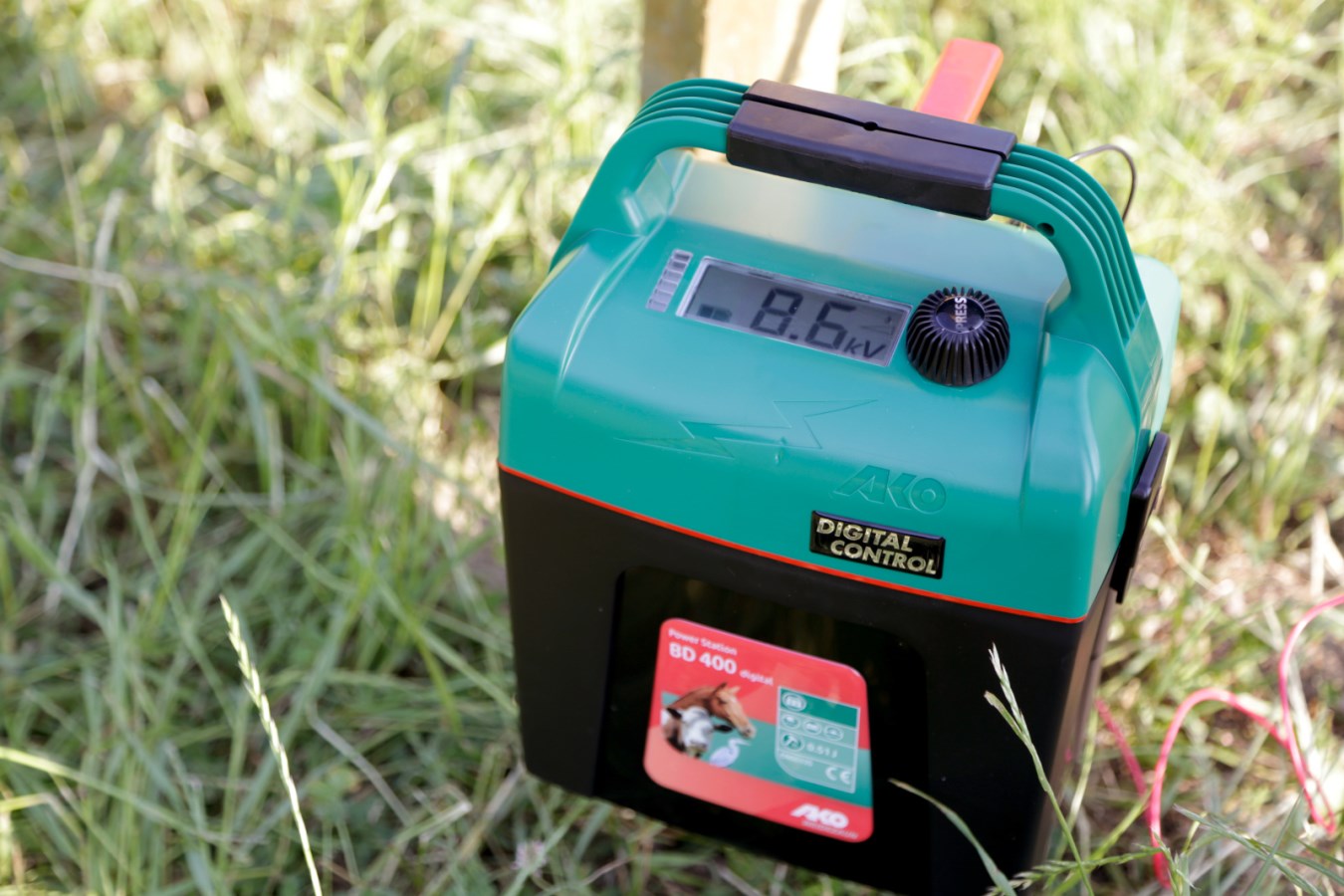

large display on top of the device gives the user all key information at a glance – even in darkness

automatic mode – minimal energy consumption thanks to optimised, independent adjustment of the output power in line with the fence length and status. Battery consumption is therefore minimal and optimum security is maintained over a very large fenced area

can be operated via 230 V power pack

allows for optional operation with 12 V battery – with deep discharge protection

Foal Protection Switch

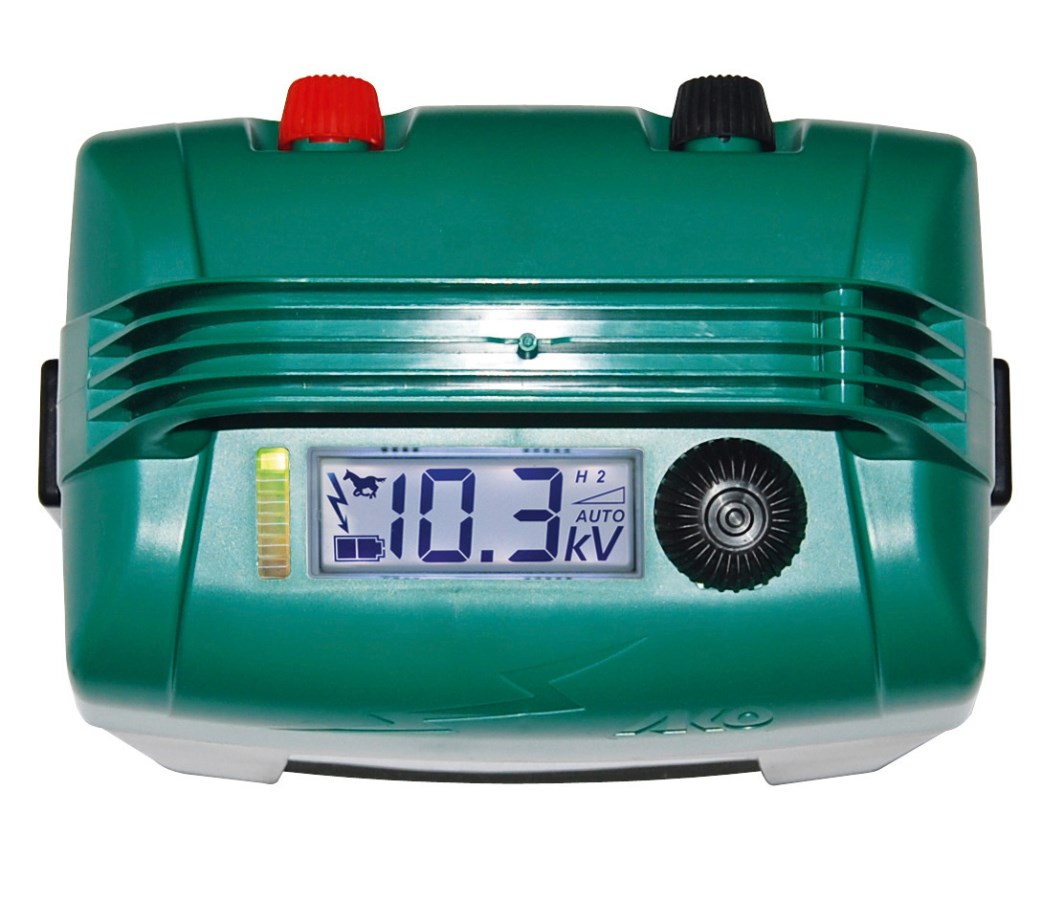

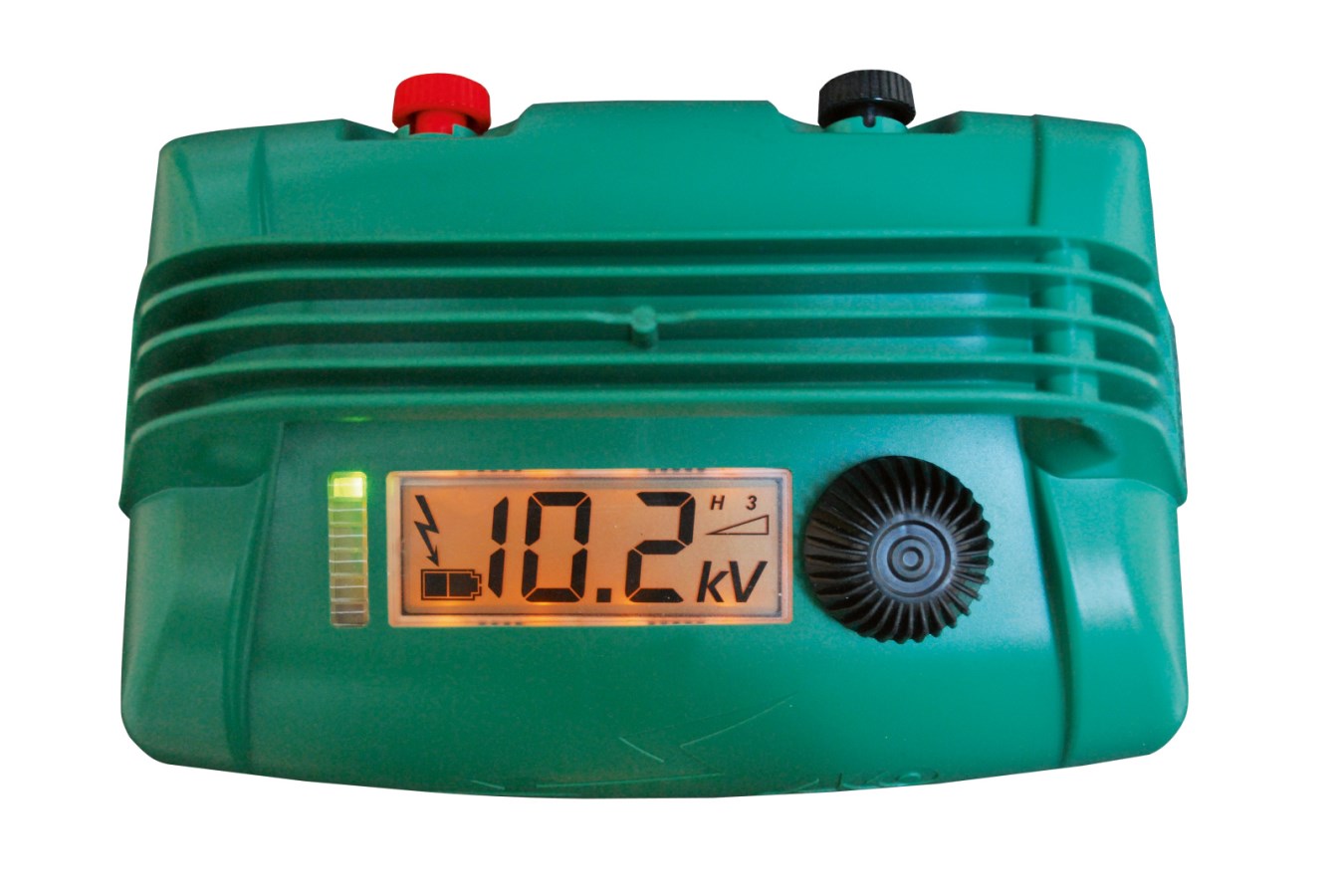

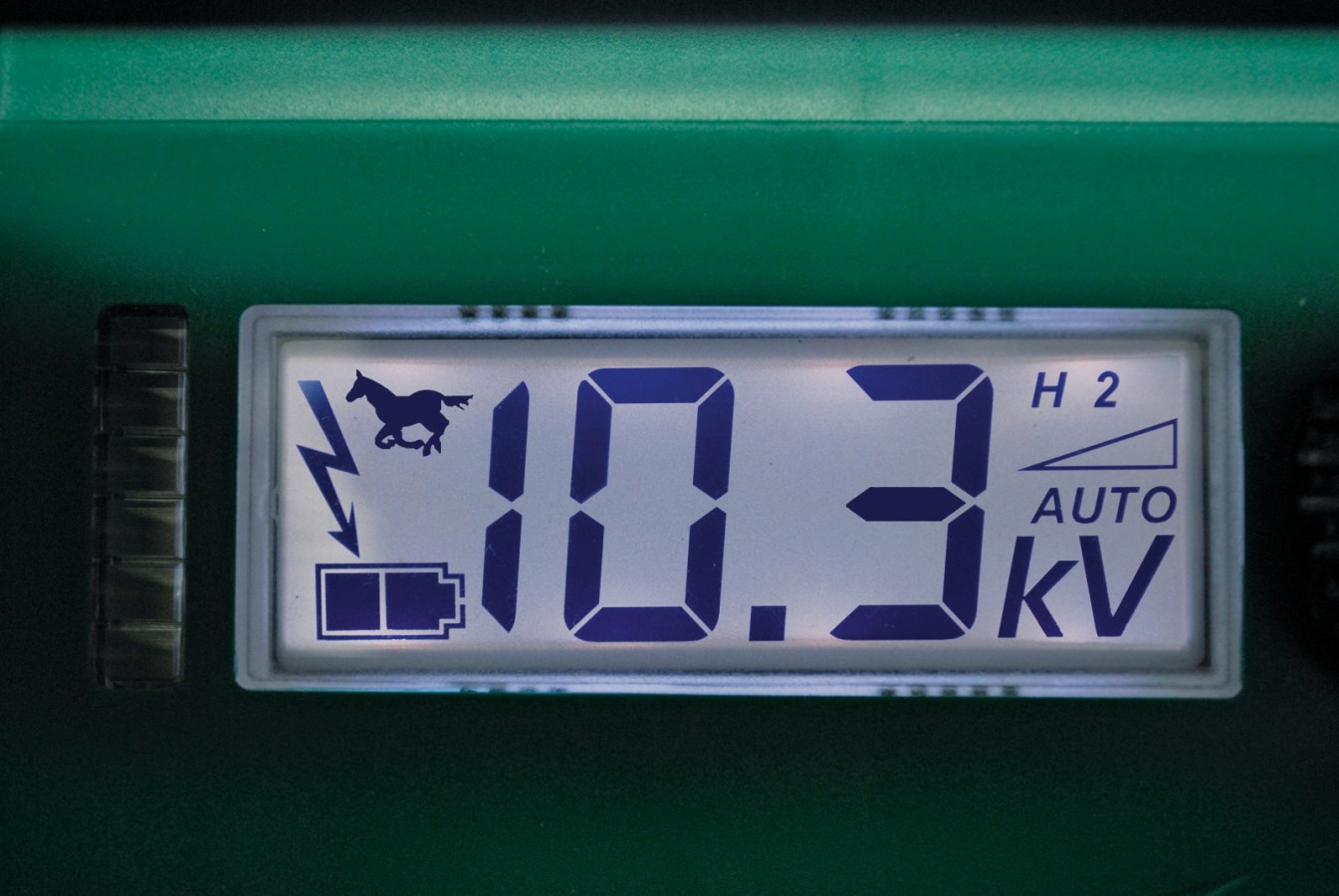

Digital display for fence and battery voltage. LED bar graph supports fence voltage control.

  • allows for alternative operation with 12 Volt and 230 Volt
  • 3-year warranty
Ref. no.PUPallet
372034154 PAL
ModelRef. no.Stored Energymax. discharge energymin. discharge energymax. voltageVoltage in Open CircuitVoltage at 500 Ohmstheoretical fence length as per VDEmax. fence length without vegetationmax. fence length with medium vegetationmax. fence length with high vegetationQty 1 m earth postsPower Consumption
BD 400 digital3720340.51 J0.4 J0.16 J11,400 V10,900 V3,900 V13 km8 km5.5 km1.7 km1- 44 mA
Included in delivery:

1 x fence unit

1 x earth rod

1 x fence / ground connector cable

1 x warning sign
