Power Station XDi 15000 smart

  • directly integrated cloud connection
  • distance-neutral control (ON/OFF, GPS tracking) and monitoring of fence systems
  • permanently free mobile data transfer to the app
  • if the protection voltage falls below the pre-set minimum level, the user is notified with a real-time alert in the free app on their smartphone
  • ultra powerful 12 / 230 Volt DUO unit
  • for long fences with heavy vegetation
  • for very robust animals such as bulls, sheep and for keeping wild boar and wolves at bay
  • 5-year warranty

Digital display and multi-colour bar graph display

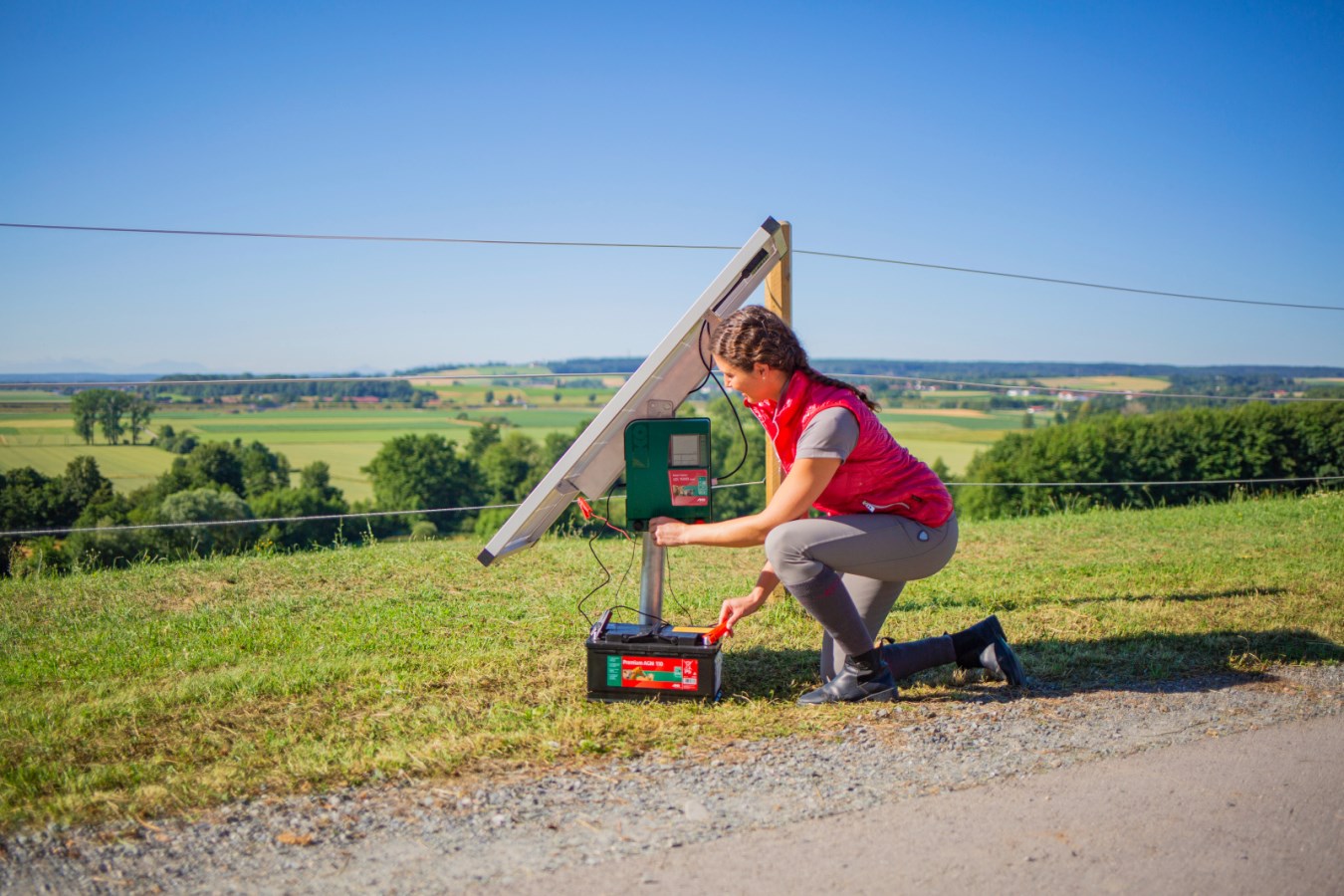

recommended solar module: 375999 (100 W), connection directly to the 12-Volt battery, optionally with ground anchor 442386 or fixing set 442386 for metal box

Items
Ref. no.PUPallet
372936172 PAL


  • connection for 230-Volt mains operation
  • Connection for 12-Volt battery operation
  • connection for reference earth
  • I-0-II level switch (I=ON-Low / 0=OFF / II=ON-High)
  • LED bar graph display for visual monitoring of the high output voltage
  • LED bar graph display for visual monitoring of the earth voltage
  • large, digital display for battery / earth voltage / output voltage high / low
  • Smart energiser / distance-independent control via smartphone / free app
  • solar support (retrofitting) possible with a 100 Watt solar module (375999)
  • solar support (right at the beginning) we recommend the solar stations XL or XXL

Model
XDi 15000 smart
Ref. no.372936
Stored Energy20 J
max. discharge energy15 J
max. voltage11200 V
Voltage in Open Circuit10200 V
Voltage at 500 Ohms8900 V
theoretical fence length as per VDE350 km
max. fence length without vegetation80 km
max. fence length with medium vegetation22 km
max. fence length with high vegetation14 km
Approx. Number of Electrifiable Nets40
Qty 1 m earth posts6
Power Consumption410 mA - 1170 mA
ModelXDi 15000 smart
Ref. no.372936
Stored Energy20 J
max. discharge energy15 J
max. voltage11200 V
Voltage in Open Circuit10200 V
Voltage at 500 Ohms8900 V
theoretical fence length as per VDE350 km
max. fence length without vegetation80 km
max. fence length with medium vegetation22 km
max. fence length with high vegetation14 km
Approx. Number of Electrifiable Nets40
Qty 1 m earth posts6
Power Consumption410 mA - 1170 mA

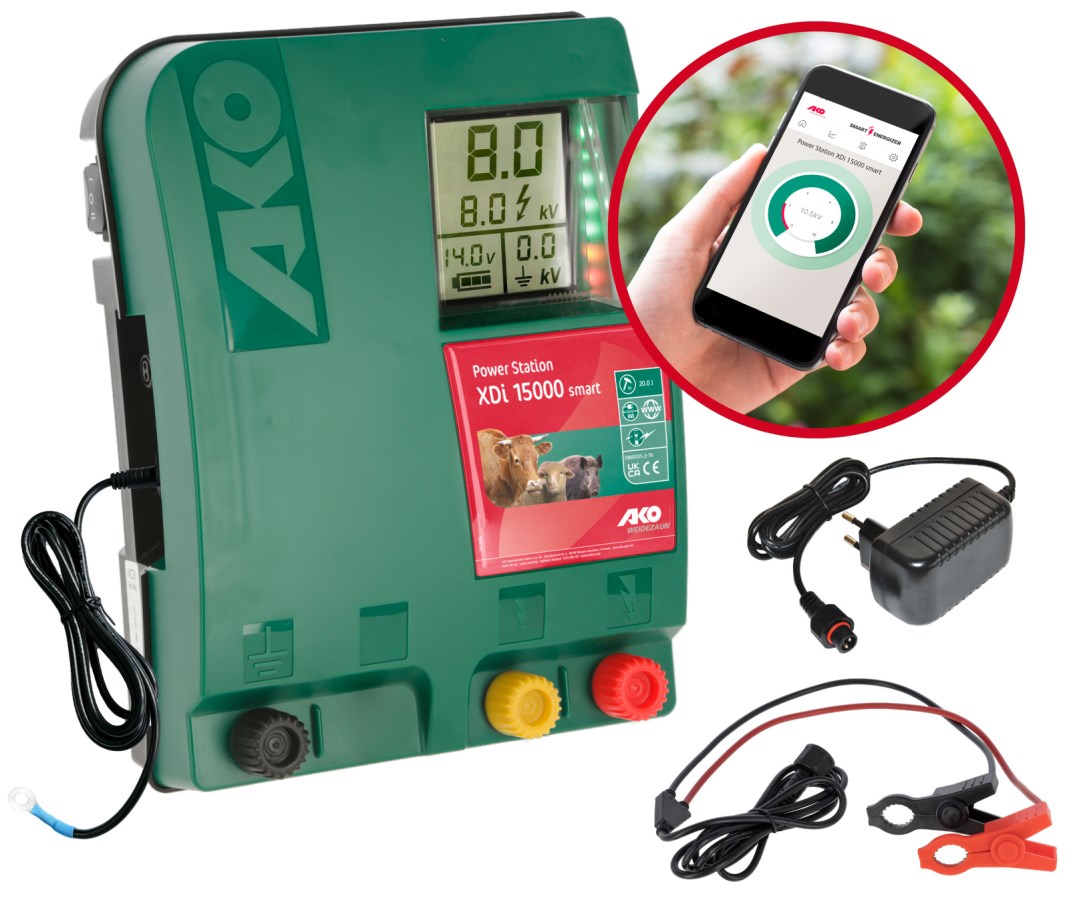

  • 1 x fence unit
  • 1 x 230 volt power pack (371042)
  • 1 x 12 Volt connection cable (E268739)
  • 1 x ground connector cable
  • 1 x fence connector cable
  • 1 x reference connection cable
  • 1 x warning sign
