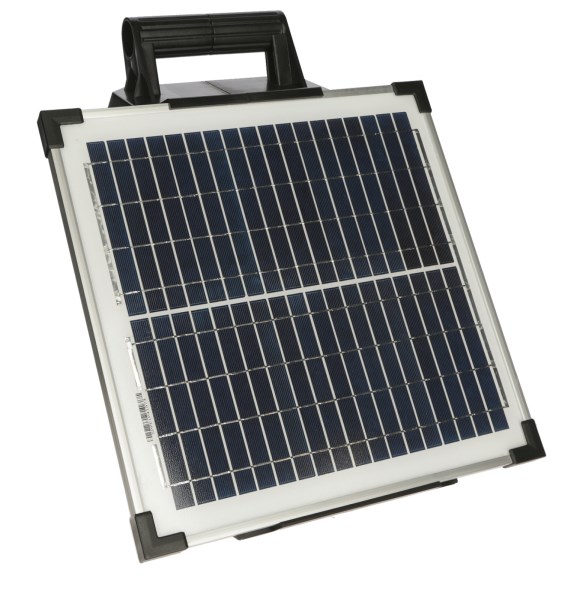

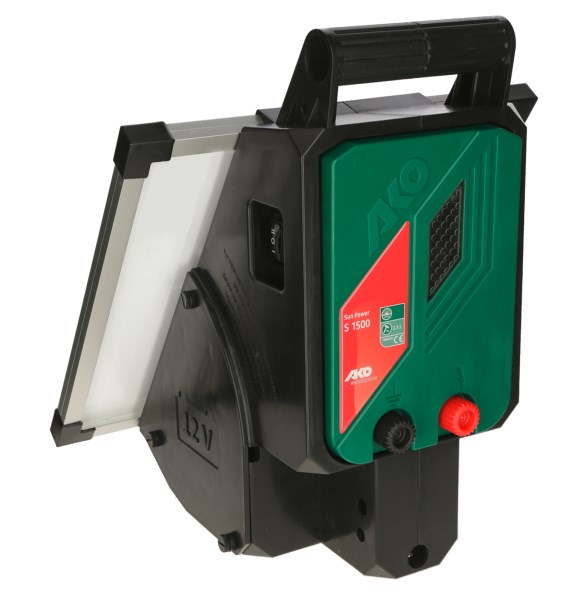

Sun Power S 1500

Fence control LED and visual battery warning indicator

Ref. no.	PU	Pallet
372951	1	24 PAL

Ref. no.	Description	Material	Height	capacity of battery	PU
441125	Spare battery			18 Ah	1/2
442383	Spiral Ground/Retaining Anchor for Solar Units		120 cm		1
442384	Wooden Post Mount	stainless steel			1
44615	Special Ground Rod	steel, hot-dip galvanised	1 m		1
441369	Special Ground Rod	steel, hot-dip galvanised	2 m		1

optimised for permanent, maintenance-free operation right through the main pasture season
with High/Low/Off switch
integrated lightning protection
intelligent, modern battery management with deep discharge protection – device functions even during extended periods of bad weather
excellent level of efficiency – therefore a longer battery life
very robust, weather-resistant, water-tight casing with carrying handle
fast and easy to install
power saving switch for when battery voltage fails
additional power saving function when the fence status is good
5-year performance guarantee on the solar module
microprocessor controlled
very bright, clearly visible LED light
corresponds to applicable EU safety standards

Model	Ref. no.	Stored Energy	max. discharge energy	max. voltage	Voltage in Open Circuit	Voltage at 500 Ohms	theoretical fence length as per VDE	max. fence length without vegetation	max. fence length with medium vegetation	max. fence length with high vegetation	Approx. Number of Electrifiable Nets	Qty 1 m earth posts	Power Consumption
S 1500	372951	2.3 J	1.5 J	10000 V	10000 V	4800 V	45 km	15 km	3 km	1.5 km	6	2	25 mA - 130 mA

1 x solar fence device*
1 x AGM battery, 12 volt, 18 Ah (441125)*
1 x 12-Volt crystalline solar module, 15 Watt (E262115) (not assembled) *
1 x 230 volt battery mains charger (371032)
1 x fence connector cable
1 x ground connector cable
1 x two-part ground/installation spear (442385)
1 x warning sign
* Warranty: solar fence device (5 year warranty), solar module (5 year performance warranty), 12 volt battery (6 month warranty)

Preview image	Item. No.	Description	372951
	441125	Spare Battery 12 V, 18 Ah for	x
