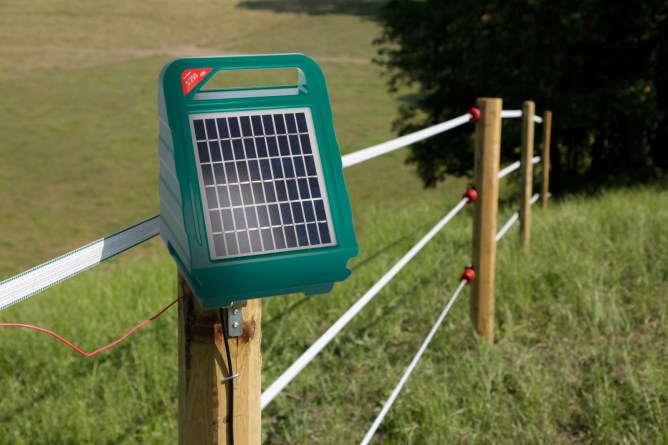

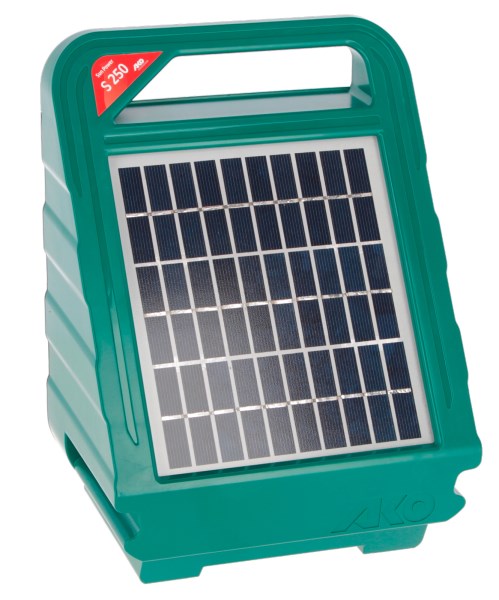

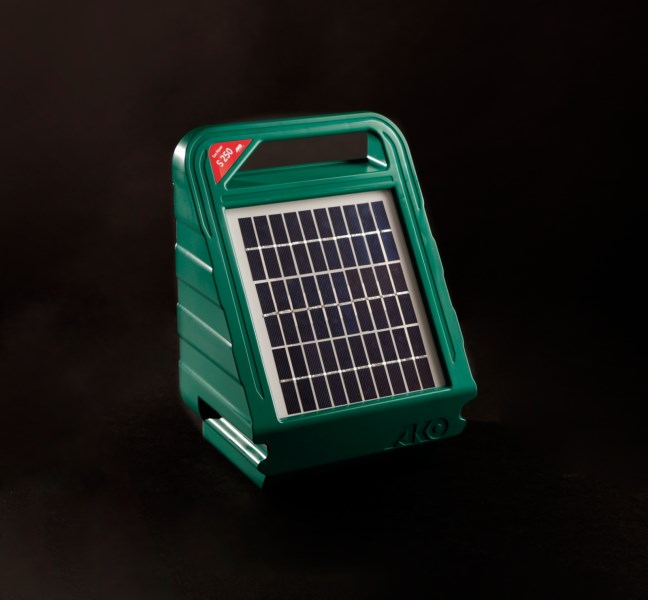

Sun Power S 250

highly effective compact solar device

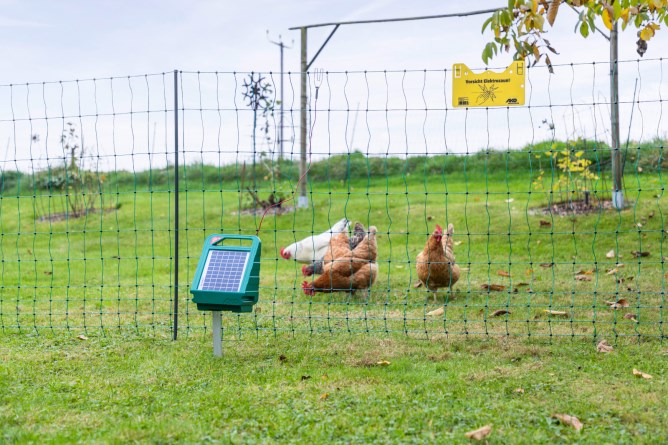

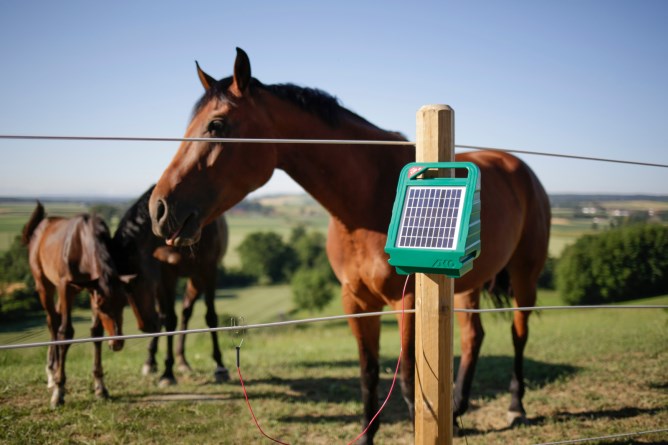

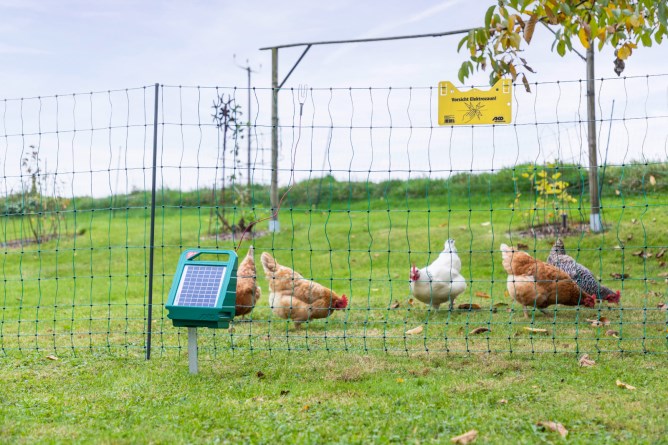

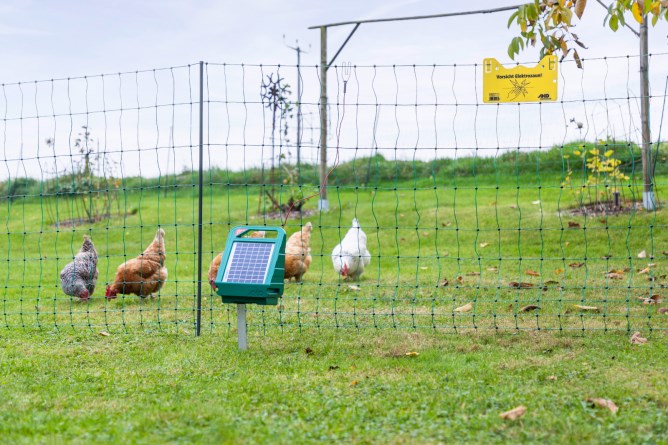

ideal for hose paddocks and smaller fence systems without vegetation
deep discharge protection for battery voltage < 11.2 volt - (if activated => only red flashing)

5-year warranty

function indicator LED (green) plus solar operation LED (blue) plus battery warning LED (red)

Items

Ref. no.	PU		Pallet
372920	1	1	90 PAL	90 PAL

Accessories

Ref. no.	Description	PU
441218	AGM Spare Battery 12 Volt, 5 Ah	1/8

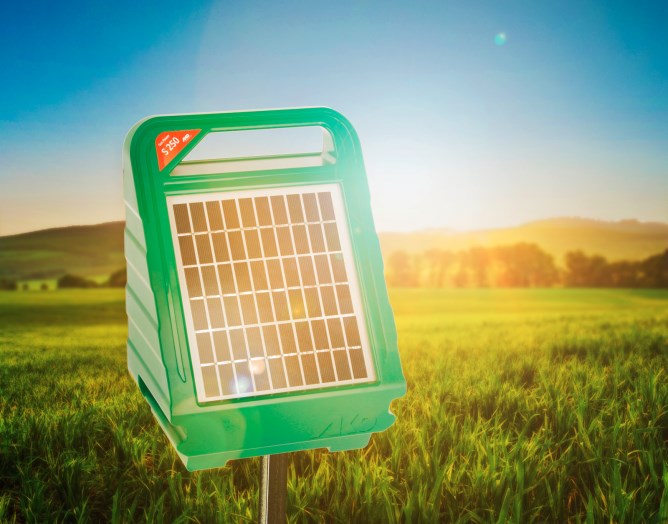

Use the natural power of the sun!

optimised for maintenance-free continuous operation over the grazing season on fences with little vegetation

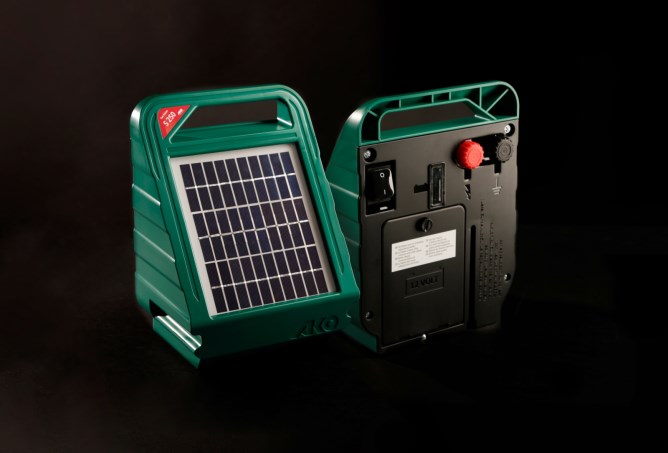

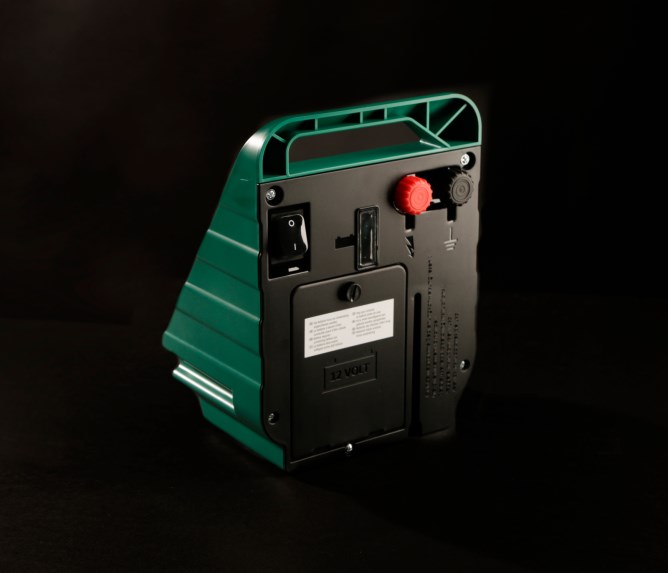

with on/off switch
Integrated battery charge regulation
micro-controller controlled
integrated lightning protection
intelligent battery management – device functions even during long periods of poor weather
excellent level of efficiency – therefore a longer battery life
very robust, weather-resistant housing

Model	Ref. no.	Stored Energy		max. discharge energy		max. voltage		Voltage in Open Circuit		Voltage at 500 Ohms		theoretical fence length as per VDE		max. fence length without vegetation		max. fence length with medium vegetation		Qty 1 m earth posts		Power Consumption
S 250	372920	0.4 J	0.4 J	0.25 J	0.25 J	10500 V	10500 V	10500 V	10500 V	2800 V	2800 V	6 km	6 km	3 km	3 km	0.7 km	0.7 km	1	1	22 mA	22 mA

1 x solar unit
1 x integrated 12 V, 5 Ah battery (441218) (6-month warranty)
1 x integrated 12 Volt, 3 Watt solar module *
1 x 230 Volt power pack (371032) to recharge the gel battery and/or to trickle charge during the winter months
1 x connector cable for fence and earth connection
1 x earth rod

Preview image	Item. No.	Description	372920
	441218	Spare AGM battery, 12 V, 5 Ah	x
