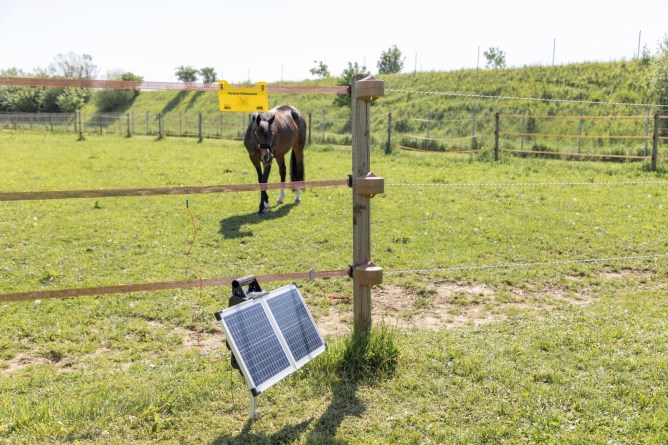

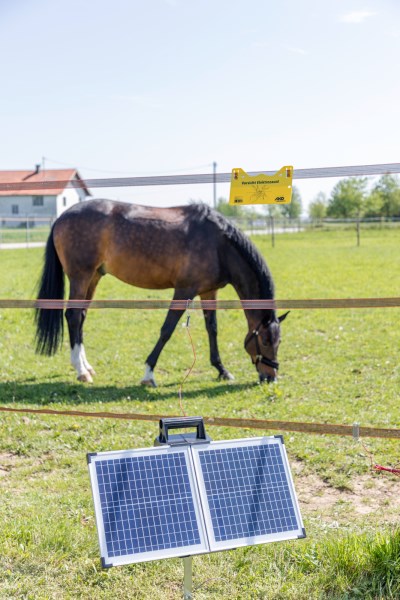

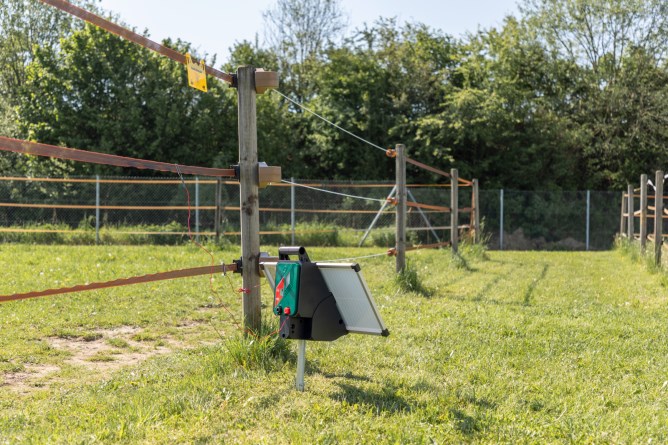

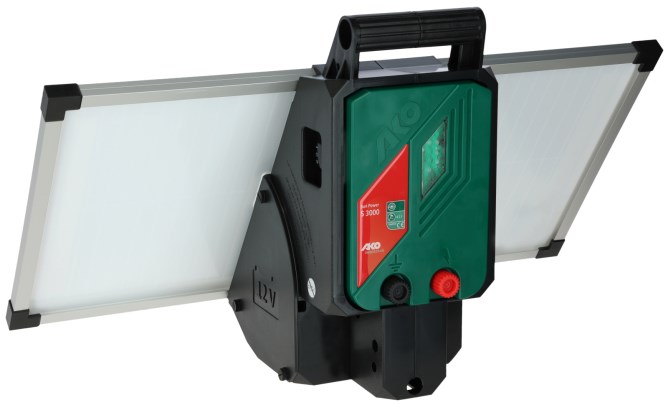

Sun Power S 3000

all-round compact solar device
can be used with light to medium vegetation, universally for all standard fences
ideal for horse and cattle paddocks, goats, sheep and wolf

multi-coloured LED bar graph display for output voltage and battery control plus solar operation LED (blue)

Ref. no.	PU		Pallet
372952	1	1	24 PAL	24 PAL

Ref. no.	Description	Material	Height	capacity of battery	PU
441125	Spare Battery			18 Ah	1/2
442383	Spiral Ground/Retaining Anchor for Solar Units		120 cm		1
442384	Wooden Post Mount	stainless steel			1
44615	Special Ground Rod	steel, hot-dip galvanised	1 m		1
441369	Special Ground Rod	steel, hot-dip galvanised	2 m		1

optimised for permanent, maintenance-free operation right through the main pasture season
with High/Low/Off switch
integrated lightning protection
intelligent, modern battery management with deep discharge protection – device functions even during extended periods of bad weather
excellent level of efficiency – therefore a longer battery life
very robust, weather-resistant, water-tight casing with carrying handle

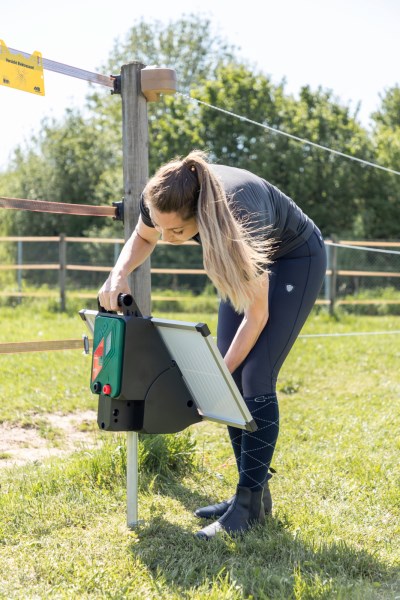

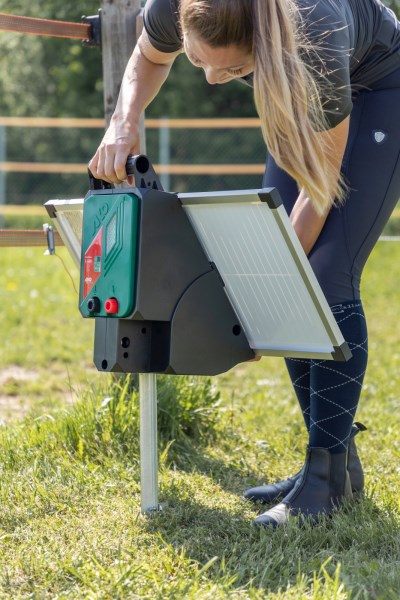

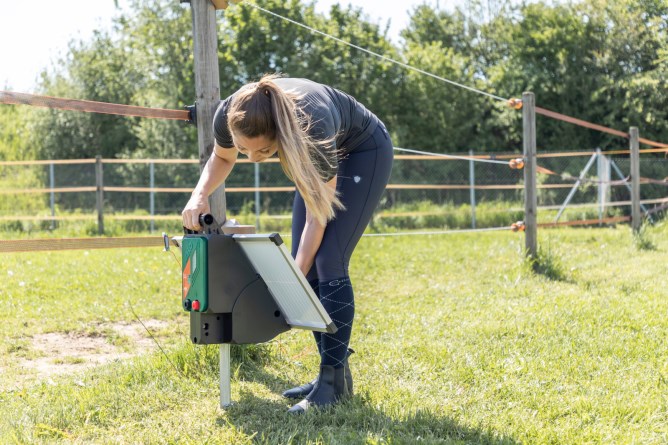

fast and easy to install
power saving switch for when battery voltage fails
additional power saving function when the fence status is good
5-year performance guarantee on the solar module
microprocessor controlled
very bright, clearly visible LED light
corresponds to applicable EU safety standards

Model	Ref. no.	Stored Energy		max. discharge energy		max. voltage		Voltage in Open Circuit		Voltage at 500 Ohms		theoretical fence length as per VDE		max. fence length without vegetation		max. fence length with medium vegetation		max. fence length with high vegetation		Approx. Number of Electrifiable Nets		Qty 1 m earth posts		Power Consumption
S 3000	372952	4.2 J	4.2 J	3 J	3 J	11000 V	11000 V	10000 V	10000 V	7600 V	7600 V	95 km	95 km	30 km	30 km	6 km	6 km	3 km	3 km	12	12	2	2	59 mA - 223 mA	59 mA - 223 mA

1 x solar fence device*
1 x AGM battery, 12 volt, 18 Ah (441125)*

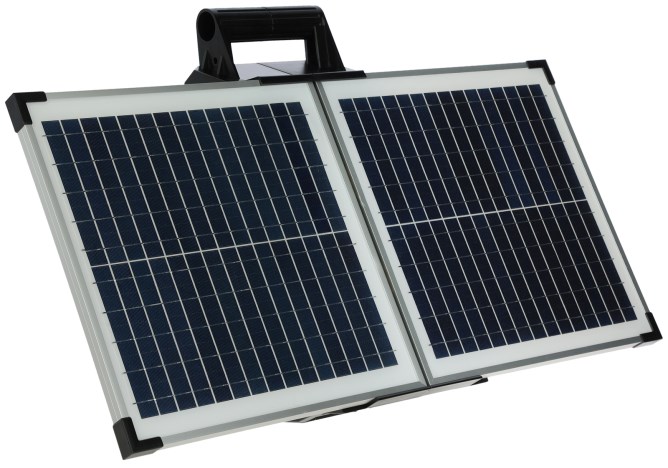

1 x 12-Volt crystalline solar module, 30 Watt (not assembled) *
1 x 230 Volt battery mains charger (371012 from model year 06/2024, before 371032)
1 x fence connector cable
1 x ground connector cable
1 x two-part ground/installation spear (442385)
1 x warning sign
* Warranty: solar fence device (5 year warranty), solar module (5 year performance warranty), 12 volt battery (6 month warranty)

Preview image	Item. No.	Description	372952
	441125	Spare Battery 12 V, 18 Ah for	x
